Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

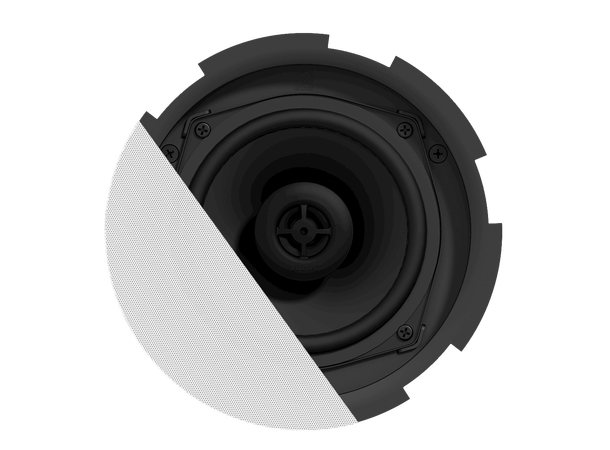

The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
| System specifications |
| Max. Power |
60 W |
| RMS Power |
30 W |
| Sound Pressure (Max. W/1m) |
@ 100 V |
102 dB |
| Sensitivity (1W/1m) |
87 dB |
| Frequency |
Response (± 3 dB) |
60 Hz - 20 kHz |
| Speaker type |
2-way coaxial |
| Impedance |
8 ? (CIRA506 & CIRA524) |
|
|
| Frequency |
Range (-10 dB) |
45 Hz - 20 kHz |
| Dispersion |
Conical |
145° |
| Connectors |
Multi-tap Fast-con™ connections |
| Drivers |
LF |
5 ¼" Woofer |
|
HF |
1” |
| Line Transformer Tappings |
1 |
6 W - 1667 ? (CIRA506) |
|
|
|
|
2 |
3 W - 3333 ? (CIRA506) |
|
|
|
|
3 |
1.5 W - 6667 ? (CIRA506) |
|
|
|
| Product Features |
| Cut-out measurement |
170 mm (Ø) |
| Dimensions |
193 x 83 mm (Ø x D) |
| Weight |
1.10 kg (CIRA506) |
|
1.15 kg (CIRA524) |
|
1.05 kg (CIRA530D) |
| Construction |
ABS |
| Front finish |
TwistFix™Borderless finely perforated steel grill |
| Mounting |
Quick-Fit™ mounting system |
| Colours |
White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) |
| Built-in depth |
83 mm (CIRA524) |
|
75 mm (CIRA506 & CIRA530D) |
| Dimensions |
193 mm (Ø) |
