Audac CSF506 brannsikret høyttaler Innfellingshøyttaler 6W/3W@100V Audac CSF506 brannsikret høyttaler Innfellingshøyttaler 6W/3W@100V

Audac CSF506 brannsikret høyttaler

Innfellingshøyttaler 6W/3W@100V

Varenr: CSF506/W
896,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoTilbehørDokumenter
Beskrivelse
The CSF506/W is a fire-protected ceiling speaker with a 5" cone, capable of producing a power of 6 Watt. It ensures a good reproduction of speech and background music. It is fitted with a 100V line transformer with power taps for 6 Watt and 3 Watt to be used in large 100V PA systems. The speaker is equipped with a special steel fire protection dome fitted around the speaker and a steel front grill with flame-retardant materials. The MK2 version is painted in RAL9016, to harmonize the AUDAC ceiling speaker range we decided to bring out the CSF506/W variant in RAL9010.
Teknisk info


Highlights

    Multi-tapping 100V line transformer
    5" full range driver
    Steel front grill with flame retardant materials

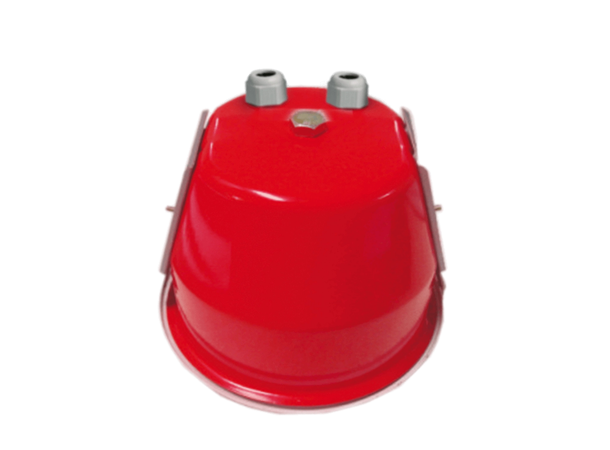

    Steel fire protection dome

Applications

    Bars & Restaurants
    Retail
    Hotels
    Corporate





Speaker type  Broadband
Peak power handling  20 W
Program power handling  10 W
RMS/AES power handling  6 W
Line Transformer Tappings  1  6 W / 1666 O
 2  3 W / 3333 O
Impedance  8 O
Frequency  Response (± 3 dB)  90 Hz - 18 kHz
Sound Pressure (Max. W/1m)  90 dB
Drivers  5”
Product Features
Dimensions  180 x 127 mm (Ø x D)
Cut-out measurement  160 mm (Ø)
Weight  1.300 kg
Construction  Steel fire protection dome
Front finish  Steel with flame retardant materials

Tilbehør
Dokumenter
ProdusentSupportAudac CSF506 Manual English.pdfAudac CSF506 Declaration-of-conformity-CAUDAC CSF506 Technical drawing.pdf
