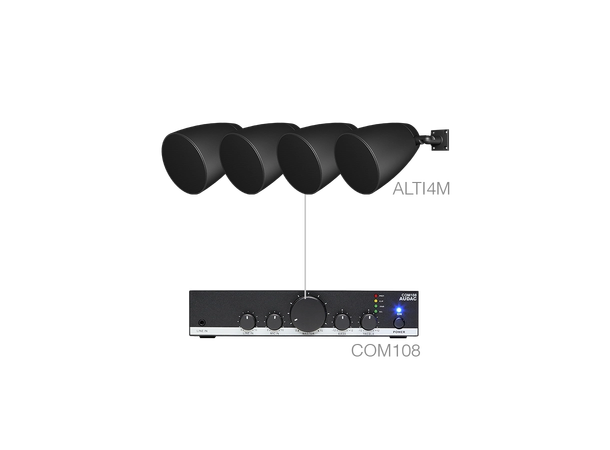

Audac LENTO4.4M SORT 4x Alti 4M høyttalere + 1x COM108 amp Audac LENTO4.4M SORT 4x Alti 4M høyttalere + 1x COM108 amp Audac LENTO4.4M SORT 4x Alti 4M høyttalere + 1x COM108 amp Audac LENTO4.4M SORT 4x Alti 4M høyttalere + 1x COM108 amp Audac LENTO4.4M SORT 4x Alti 4M høyttalere + 1x COM108 amp

Audac LENTO4.4M SORT

4x Alti 4M høyttalere + 1x COM108 amp

Varenr: LENTO4.4M/B
15 426,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoDokumenter
Beskrivelse

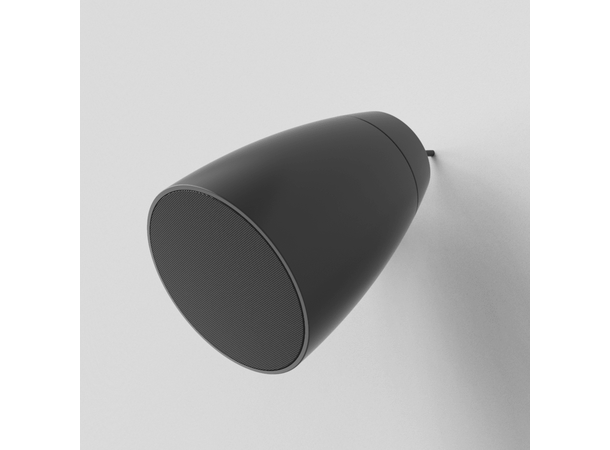

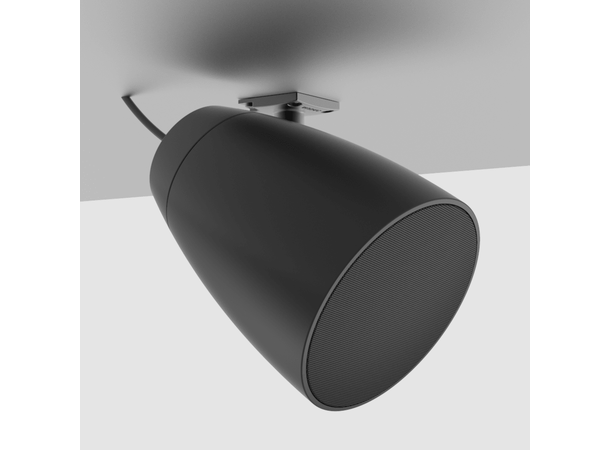

The combination of the ALTI4M loudspeakers’ stunning design, high-quality components and excellent off-axis performance, together with the die-cast mounting bracket for wall and ceiling purposes enables the LENTO4.4M set to be mounted in numerous ways and different configurations, providing an endless variety of versatile placement options in terms of mounting. Guaranteeing clear speech intelligence and a warm and detailed sound reproduction with elegant aesthetics.

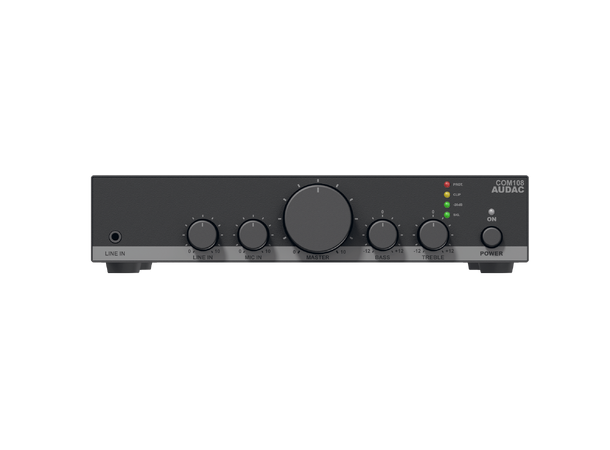

Powered by a COM108 amplifier, great flexibility for connecting sources and microphones is offered. This system, using 4 ALTI4M loudspeakers, can cover areas of around 100m² with warm and detailed sound.

Features

  • AWX5™ connection
  • Outdoor rated construction
  • Die-cast mounting bracket
  • Countless mounting possibilities
  • High-quality sound
  • Connection flexibility
  • Cost-effective
Teknisk info

Technical specifications

System specifications
RMS/AES power handling @ 4 ? 1 x 40 W
Inputs Balanced Microphone Sensitivity -0 dB ~ +50 dB
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Type 1 x Balanced Microphone
Unbalanced Stereo Type 1 x Stereo Unbalanced Line
Connector RCA / 3.5 mm Jack
Sensitivity -4 dB ~ +20 dB
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.5% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Power Supply Switching mode
Operating 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Balanced Microphone Phantom Power 15 V DC
Priority mute contact
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100/ 70 V / 4 ?
Protection Amplifier DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Product Features
Dimensions 217.5 x 43.7 x 300 mm (W x H x D)
Weight 3 kg
Mounting 1/2 19” / 1 HE or tabletop
Construction Steel
Colours Black
Accessories Optional 19” Rackmount adapter
Recommended applications
Bars & Restaurants
Retail
Corporate     Available models
ALTI4M/B Black version
ALTI4M/W White version
System specifications
Peak power handling 120 W
Program power handling 60 W
RMS/AES power handling 30 W
Speaker type 2-way coaxial
Drivers 4”
Impedance 16 ?

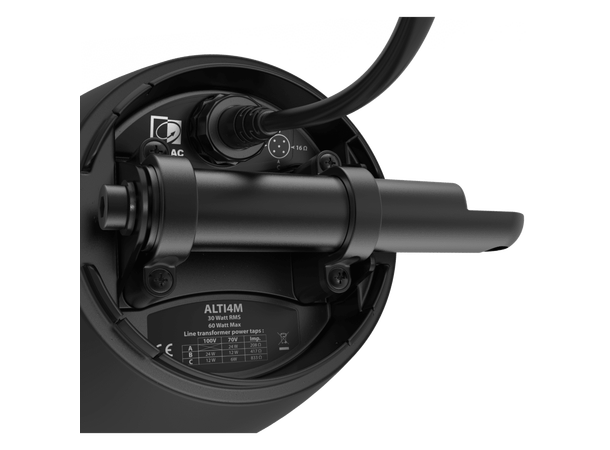

Line Transformer Tappings 1 208 ? - 100 V / Not used - 70 V / 24 W
2 417 ? - 100 V / 24 W - 70 V / 12 W
3 833 ? - 100 V / 12 W - 70 V / 6 W
Dispersion Conical 165° (average 500 Hz to 5 kHz @ -6 dB)
Connectors Waterproof AWX-5 connector
Sensitivity (1W/1m) 80 dB
Sound Pressure (Max. W/1m) @ 16 ? 95.1 dB
Frequency Range (-10 dB) 65 Hz - 20 kHz
Response (± 3 dB) 85 Hz - 20 kHz
Ingress Protection rating IP65
Product Features
Dimensions 205 x 170 x 258 mm (W x H x D)
Connection cable length 0.7 m
Construction Polypropylene
Front finish Aluminium grill
Mounting & handling 2-way Revolving mounting bracket
Accessories Included 5-pin connection cable (70 cm) - AWC07
2-way Revolving mounting bracket
Weight 2.31 kg

Dokumenter
ProdusentProduktSupportAUDAC ALTI4M Acoustical data.pdfAUDAC ALTI4M Declaration of conformity.pAUDAC ALTI4M Technical Drawing.pdfAUDAC ALTI4M UserManual.pdfAudac COM104 Declaration of conformity.pAudac COM104 Manual.pdf
