Audac TBA60 installasjonsbrakett

Passer til CALI660

Varenr: TBA60

496,-

Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.

Beskrivelse

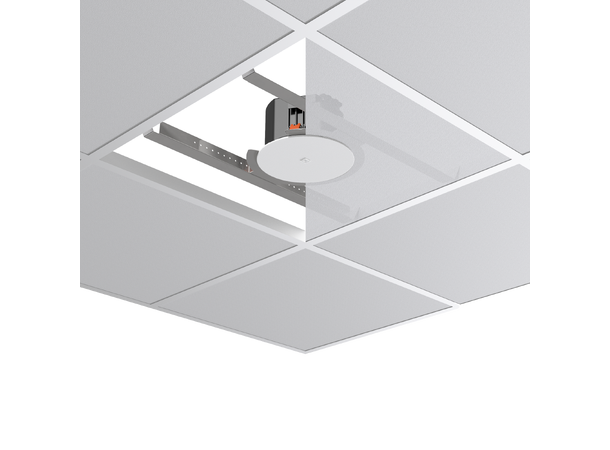

The TBA series tile bridges are optional accessories for installing the CALI series speakers into 60 x 60 cm or 120 x 60 cm ceiling tiles in suspended ceiling applications. Designed to make mounting of the tile bridge possible through the speaker cutout.

Teknisk info

SYSTEM SPECIFICATIONS
Max. Power		60 W
RMS Power		30 W
Sensitivity (1W/1m)		87 dB
Speaker type		2-way coaxial
Impedance		16 ? (CIRA530D)
		8 ? (CIRA506 & CIRA524)
Connectors		Multi-tap Fast-con™ connections
Sound Pressure (Max. W/1m)	@ 100 V	102 dB
Frequency	Response (± 3 dB)	60 Hz - 20 kHz
	Range (-10 dB)	45 Hz - 20 kHz
Dispersion	Conical	145°
Drivers	LF	5 ¼" Woofer
	HF	1”
Line Transformer Tappings	1	6 W - 1667 ? (CIRA506)
		24 W - 417 ? (CIRA524)
	2	3 W - 3333 ? (CIRA506)
		12 W - 833 ? (CIRA524)
	3	1.5 W - 6667 ? (CIRA506)
		6 W - 1667 ? (CIRA524)

PRODUCT FEATURES
Cut-out measurement	170 mm (Ø)
Dimensions	193 x 83 mm (Ø x D)
Weight	1.10 kg (CIRA506)
	1.15 kg (CIRA524)
	1.05 kg (CIRA530D)
Construction	ABS
Front finish	Twist-Fix™ Borderless finely perforated steel grill
Mounting	Quick-Fit™ mounting system
Colours	White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W)
Built-in depth	83 mm (CIRA524)
	75 mm (CIRA506 & CIRA530D)
Dimensions	193 mm (Ø)
