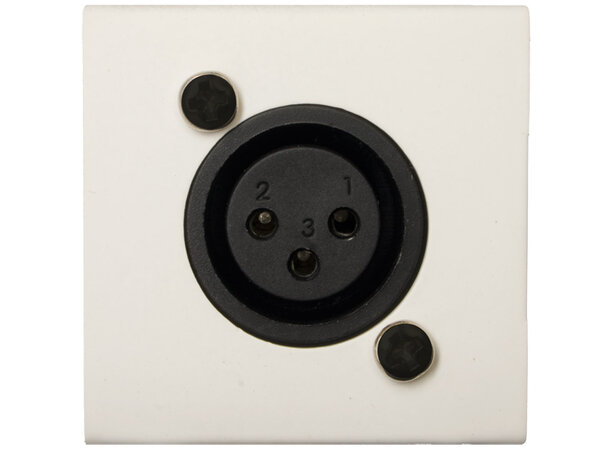

The WMI are flush mountable Wall Microphone Input Units, which can be
integrated into several kinds of installation materials for system
integration. They are fitted with a Female XLR input connector on the
front side and a terminal block connector on the rear side. The signal
which is applied to the input connection is converted to a differential
signal with increased voltage levels. This way, the signal is made
insensitive to interferrence and noise and can be transferred over a
long distance without any loss of quality. This allows reliable signal
transmission up to 300 meters over CAT5E (or better) twisted pair
cabling. A jumper on the rear side allows enabling of 15 Volts phantom
power. It should be used in combination with a matching device on the
receiver end.
