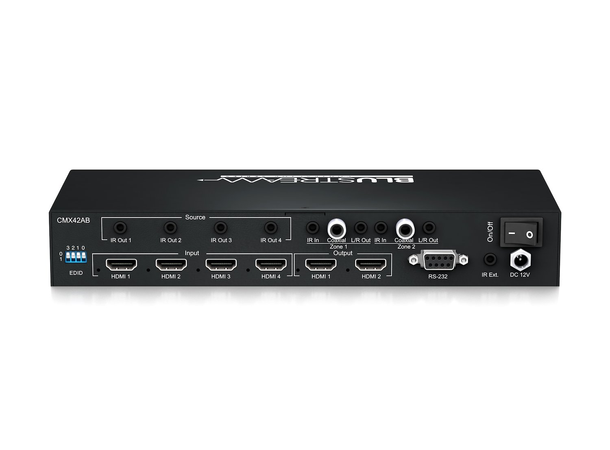

| Video Input Connectors: 4 x HDMI
Type A, 19-pin, female, locking |
| Video Output Connectors: 2
x HDMI Type A, 19-pin, female, locking |
| Audio Output Connectors: 2 x RCA (S/PDIF), 2 x
Analogue audio L/R (3.5mm stereo jack) |
| RS-232 Serial Port: DB-9,
female |
| IR Input Ports: 3 x 3.5mm stereo jack |
| IR Output Ports: 4 x 3.5mm
mono jack |
| Mounting Kit Included |
| Unit Dimensions (W x D x
H): 255mm x 104mm x 40mm (without feet or connections) |
| Unit Dimensions (W x D x H): 255mm x 115mm x 47mm
(with feet and connections) |
| Shipping Weight: 1.6kg |
| Operating Temperature: 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: -4°F
to 140°F (-20°C to 60°C) |
| Power Supply: 12V/2A DC |
