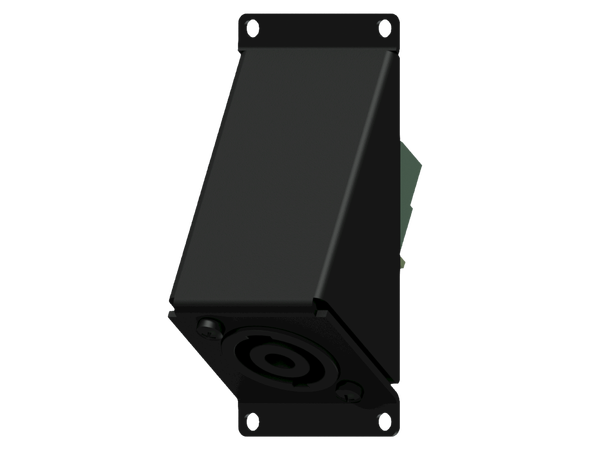

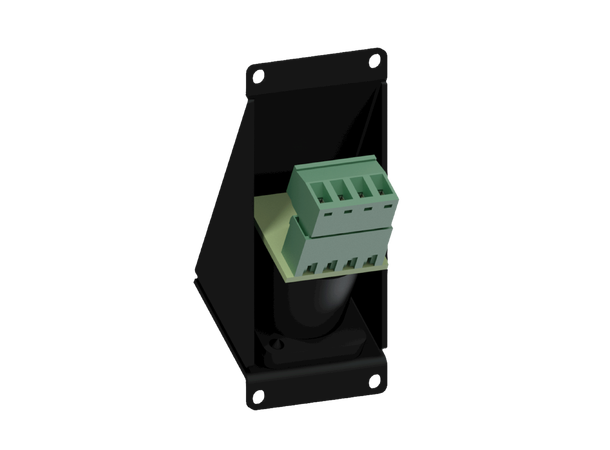

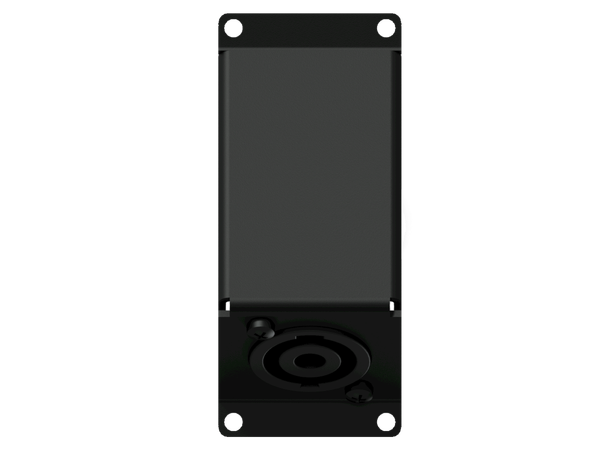

The CASY143 is a CASY module with an angled male NL4MP SpeakON connector on the front side and a 4-pin terminal block connector on the back side. This flexible structure for system integration & connectivity can easily be implemented in a wide variety of CASY chassis.
Highlights
- 1.5 mm thick cold rolled steel frame
- Structured and scratch resistant black powder coating
- Assembly screws included
- Compatible with any CASY chassis
- SpeakON connectors by Neutrik
- Solderless connections
- Flexible system for system integration & connectivity
| PRODUCT FEATURES |
|---|
| Dimensions | 35.5 x 82.1 mm (W x H) |
| Weight | 0.084 kg |
| Connection | SpeakON (angled) (NL4MP) to 4-pin terminal block |
| Module | Space | 1 |
