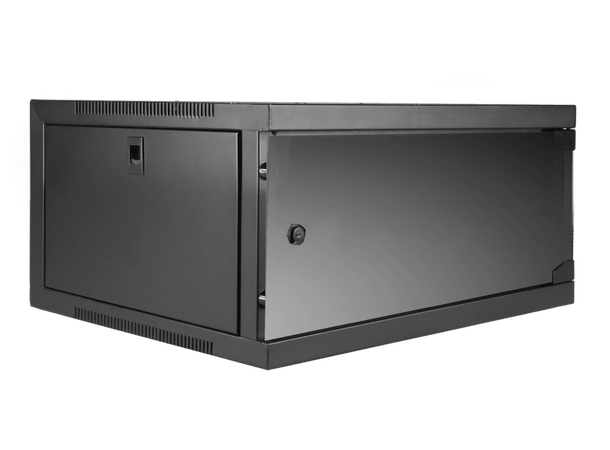

The EPR406 is an economical wall mountable 19" rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The construction is made of an 1.5 mm thick steel frame with 1.0 mm thick plates and is finished with a black (RAL9004) fine structured powder coating. It stores up to 6 units of 19” equipment, comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles allowing easy and flexible cabling & installation.
Highlights
Reversible door position
In-depth adjustable 19” profiles
Removable side panels
Cable entry on top & bottom
Ventilation grid on top
Punched square holes for use with snap-in cage nuts
Static load up to 50 Kg
ANSI/EIA RS- 310D, DIN41491 and IEC60297 standard
