- In depth adjustable
- Stores up to 9 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- Loading capacity of 100 Kg
- 2.5 mm thick cold rolled steel frame
- Easy assembly in 10 minutes
- Floor standing & wall mounted use
- Unrestricted air flow due to open-frame design
- Stand alone & in-furniture integration
- Ships as flat-down package

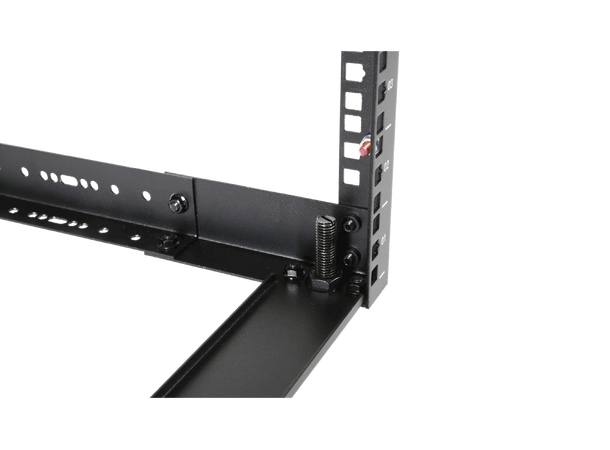

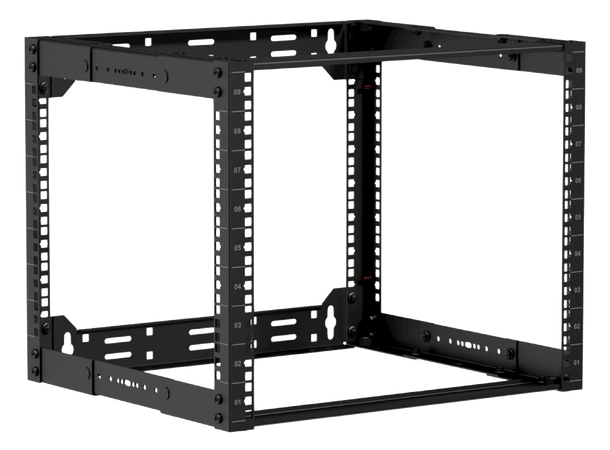

The OPR309A is an in depth adjustable professional and solid constructed open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 9 units of 19” equipment.

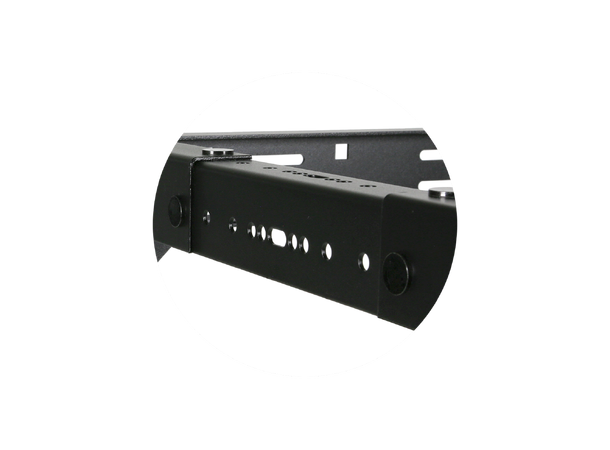

The open-frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
| Product Features |
|---|
| Unit height | 6 HE |
| Max. usable depth | 300 ~ 450 mm |
| Max. load standing | 100 kg |
| Max. load hanging | 50 kg |
| Dimensions | 520 x 425 x 300~450 mm (W x H x D) (excl. rubber feet) |
| Colours | Black (RAL9004) |
| Accessories | Included | 4 x Leveling feet |
| | 4 x M8 expanding wall bolt |
| | 24 x Cage nuts + screws |
