Highlights
- 0° - 15° adjustable angle
- Stores up to 9 units of 19” Equipment
- Desktop standing use
- 2.0 mm thick cold rolled steel frame
- Punched square holes for use with snap-in cage nuts
- Easy assembly in 5 minutes
- Ships as flat-down package
- Slanted front for optimal stability and equipment viewing
- Perforated sides for cable guiding or accessories mounting
- 1 unit backside mounting possibility

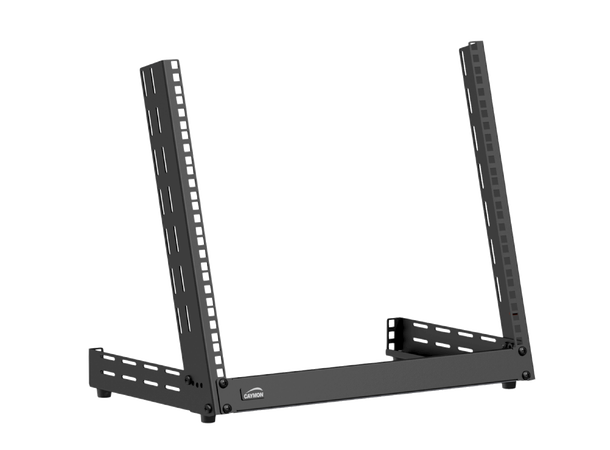

The TPR309A is a professional and solid constructed desktop rack with adjustable angle for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease while simultaneously storing up to 9 units for studio, processing, test and other 19” equipment. The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.
The construction is made of 2.0 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front offer a multifunctional use of the rack while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.
| Product Features |
|---|
| Adjustable angle | 0° - 15° adjustable tilt angle |
| Unit height | 9 HE |
| Max. load | 30 kg |
| Dimensions | 509 x 446,2 x 301,3 mm (W x H x D) (incl. rubber feet) |
| Colours | Black (RAL9004) |
| Accessories | Included | 1 set Assembly hardware |
| | 20 x Cage nuts + screws |
