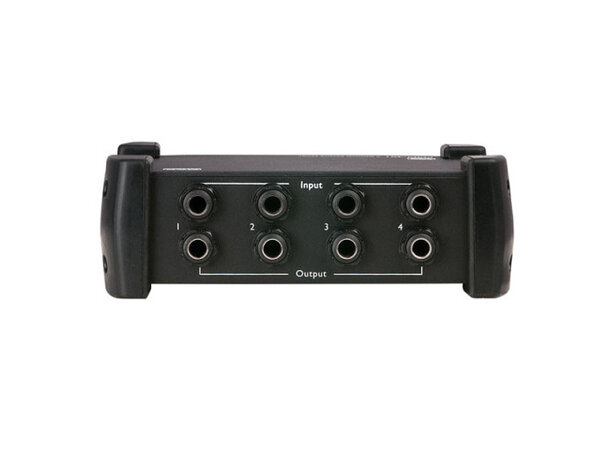

The PMM-401 is a four channel passive mixer for expanding a mixer with extra line signals. It requires no batteries or other power source. The unit can be used as a 1-in 4-out box then all controls are turned completely clockwise. It is a use full tool that will help you at unforeseen situations.
The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.
Specifications
Frequency Response: 20Hz-20KHz
Inputs: 6,3 TRS Jack,
Outputs: 6,3 TRS Jack
Input Impedance: 1Meg
Input Impedance: 50 kOhm
Output Impedance: 12 KOhm
Dimensions: 53 x 158 x 135 mm (HxWxD)
Weight: 0,67 Kg
