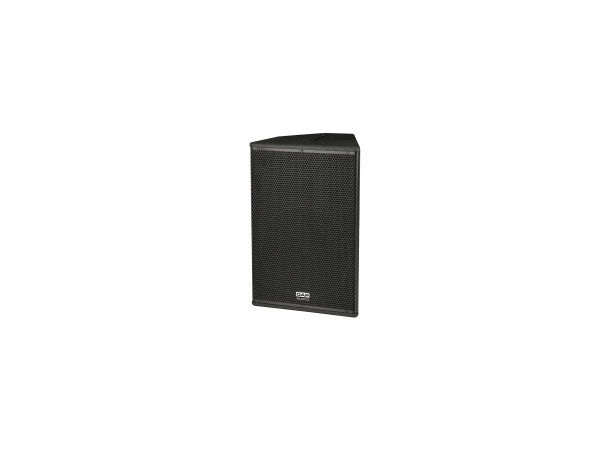

The DAP SM series comprises a range of high-performance loudspeaker cabinets for professional sound reinforcement for short to medium distances. All Tops are equipped with M-10 screws for rigging eyes, metal top hats, build-in handles and 4 stand pods and the 15" and 18" woofers are equipped with steel flange plates for top speaker-tubes.
Nominal Impedance: 8 Ohm
Power Handling: 300 Watt Continuous
600 Watt Program
1200 Watt Peak
Freq. Response (-3 dB): 55 – 17.000 Hz
Freq. Range (-10 dB): 42 – 22.000 Hz
Crossover Frequency: 2000 Hz, 18 dB/Oct
Sensitivity (Full Space): 97 dB / W / m
Peak SPL at 1 m: 127.8 dB (Theoretical)
Nominal Dispersion (HxV): 50 - 100° x 55°
Dimensions (LxWxH): 460 x 400 x 710 mm
Net Weight: 28 kg
Mounting: Tophat 35mm, flying strip
Woofer: PA-1575170,
Alu Basket,
High Driver: PA-44M, 8 Ohm,
1.75" Poly
Carbonate Dome,
34 mm Voice Coil
