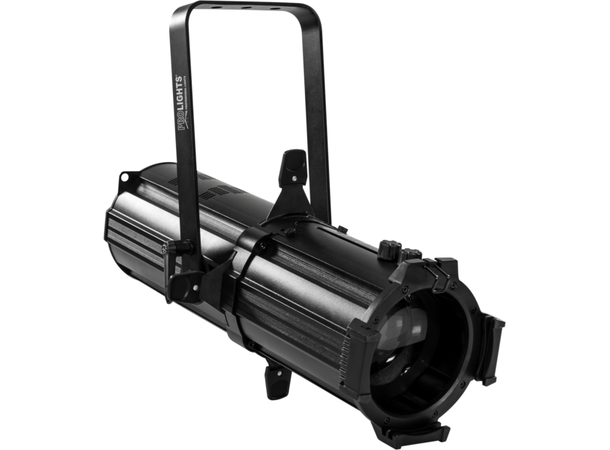

ECLIPSEJR is the new affordable LED profiler by Prolights, featurig a new level of performance in the field of ellipsoidal with LED technology with an high flux 100W COB LED and an uniform projection.
Design of ECLIPSE makes it a flexible fixture to project from any distance thank to the manual zoom.
Features:
Color Temperature: Tungsten 3000K, Daylight 5000K
High-efficiency optics maximizing uniformity of projection, framing precision, color temperature stability over the entire dimming curve
25°-50° manual zoom
Includes gobos holder and gel frame holder
LIGHT SOURCE
- Source: 1x100W High Power White LED
- Temperature: TU 3000 K - DY 5000K
- Luminous Flux: TU 3545lm - DY 3757lm
- Lux: (25°) TU 3046lm - DY 3243lux @3m
- Lux: (50°) TU 1186LM - DY 1262lux @3m
- Source Life Expectancy: >50.000 h
OPTICS
- Zoom: 25°~50° Manual
- Beam Angle: 25°~50°
- Lens Type: HQ glass lens optics
BODY
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
CONTROL
- Protocols: DMX512
- Dmx Channels: 1/3ch
- Display: LED display user interface
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Operating Temperature: -10° / 45°
- Flicker: Flicker free operation
ELECTRICAL
- Power Supply: 100-240V – 50/60Hz
- Power Consumption (at 230V): 105W
- Power Consumption (at 120V): 105W
PHYSICAL
- Signal Connection: 3p in/out
- Power Connection: IEC 10A in/out
- IP: 20
- Cooling: Forced air with low noise fan, user-definable levels
- Suspension And Fixing: Hanging bracket suitable for safe hanging and for floor positioning
- Dimensions (WxHxD): 259x430x529mm
Weight: 5,76Kg
