| Specifications | |
|---|
| Audio circuit type: | Active Buffer with Phase Splitter |
| Number of channels: | 1 |
| Frequency response: | 20Hz to 20KHz |
| Dynamic range: | >100dB |
| Gain: | +1.3dBu/+4.4dB |
| Clip Level: | +3.3dBu/+12.3dBu |
| Total harmonic distortion: | <0.006% |
| Intermodulation Distortion: | <0.01% |
| Phase Deviation: | 25/12° Maximum |
| Input Impedance: | 800K/23K |
| Output Impedance: | 330 Ohms |
| Equivalent Input Noise: | -101dBu |
| Noise Floor: | -97dBu |
| Maximum Input: | +2dBu/+8dBu |
| Features |

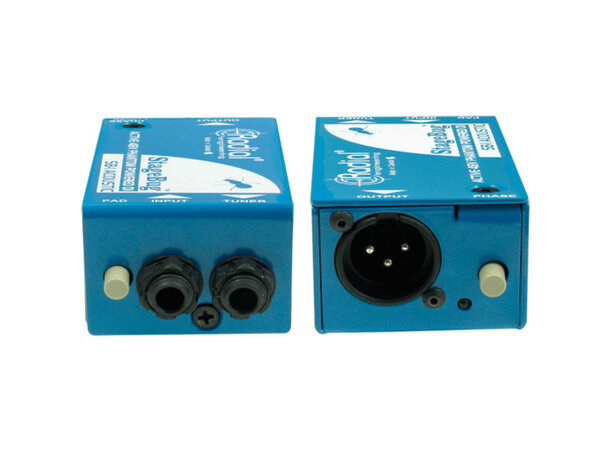

| Input pad, 180° polarity reverse, Ground lift |
| Input Connectors: | 1/4" |
| Output Connectors: | XLR |
| General |
| Construction: | 16 gauge steel chassis & outer shell |
| Size (L x W x D): | 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm) |
| Weight: | 0.55 lbs (250 grams) |
| Shipping size (L x W x D): | 8" x 5" x 3" (203mm x 127mm x 76mm) |
| Shipping weight: | 0.8 lbs (365 grams) |
| Power: | 48V phantom power, 5mA |
| Conditions: | For use in dry locations only between 5°C and 40°C |
| Warranty: | Radial 3-year, transferable |
