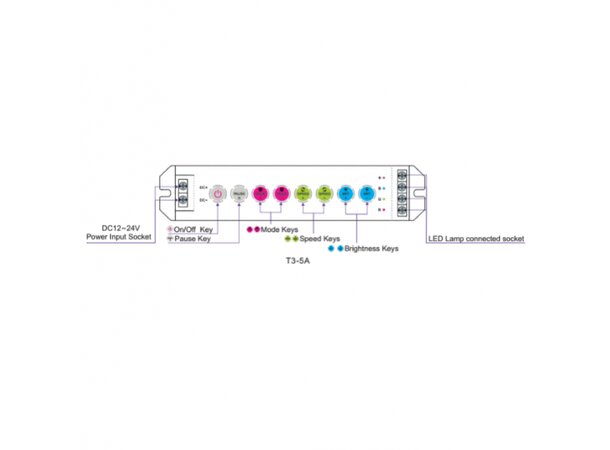

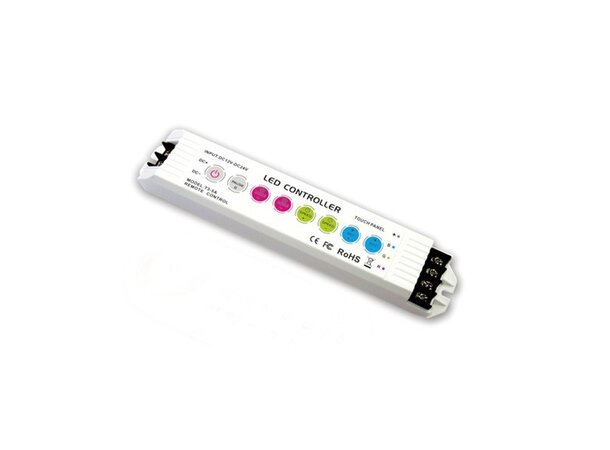

This receiver works with Radio Frequency and can be used with LED Remote RF Touch 3 (item 22552), LED Remote RF Touch 3M (item 22553) and LED Remote RF Touch 3X (item 22557). The receiver has touch buttons which enables you to control the strips through the receiver as well.
| Electronics | Power consumption | 180 W, 360W |
| | LED Output Current (max per output) | 5A |
| | Current max. | 15A |
| | LED outputs | 3 |
| | LED Output Voltage | 12-24V |
| | Output power | 180W @ 12V, 360W @ 24V |
| Photometric Data | Light Color | RGB |
| Control Characteristics | Output | PWM-CV |
| | Dimming Protocol | RF, Manual |
| | Driver Configuration | Buttons Control Panel |
| Wiring Specifications | Wire type | 2,5mm2 |
| | Wire Strip Length | 5mm |
| Protection | Reverse Polarity | Yes |
| | LED Output Short | Yes |
| | Overload | Yes |
| | Restart after protection | Yes |
| Environmental | Ingress protection | IP20 |
| | Operating temperature | -30 ~ 55 °C |
| Approvals | CE EMC | ETSI EN 301 489-1 V1.9.2 (2011-09), ETSI EN 301 489-3 V1.6.1 (2013-08) |
| | FCC | FCC Part 15:2013 |
| | RoHS2 | EN1122B:2001, EPA3050B:1996, EPA3052:1996, EPA3060A:1996, EPA3540C:1996, EPA7196A:1992, EPA8270D:2007, IEC62321:2008 |
| | Warranty | 5 Year |
| Package Weight & Dimensions | W x H x D (cm) | 4.00 x 3.00 x 21.10 |
| | Weight (kg) | 0.18 |
