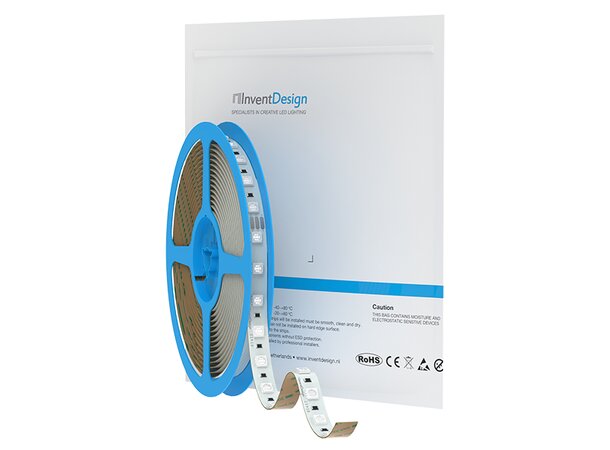

Dette er en 24V stripe i RGB og inneholder 70 3-i-1 SMD5050 LED / m. Stripen kan kobles til en hvilken som helst 24V PSU. Avhengig av driver kan stripen dempes. Skjæreseksjonen er hver 10. cm. Hver stripe er utstyrt med et 3M dobbeltsidig tape.
| General | Length (mm) | 5000 |
| | Width (mm) | 10 |
| | Height (mm) | 2 |
| | Housing Color | White |
| | Housing Material | Copper |
| | Mounting | 3M tape |
| | Weight (g) | 125 |
| | Cutting Interval (mm) | 100 |
| Electronics | Input Voltage | 24 V DC |
| | Power Consumption (W/m) | 14.4 |
| | Power Supply | N/A |
| Lighting | Emission | Direct |
| | Beam Angle (°) | 120 |
| | LED Type | SMD5050 |
| | LED Quantity /m | 70 |
| | LED Spacing (mm) | 14.3 |
| | Color Range | RGB |
| | Luminous Flux | 780 lm/m @ 23357K (RGB), 227 lm/m @ 1000K (R), 470 lm/m @ 8355K (G), 108 lm/m @ =100000K (B) |
| | TM-21 Projection | L80 @ 85°C (LM80-15), Reported =36000, Calculated =90000 |
| Control | Control | PWM |
| | Control Units | Single pixel |
| | Number of Channels | 3 |
| Environmental | Storage Temperature | -40 ~ +80 °C |
| | Operating Temperature | -25 ~ +60 °C |
| | Ingress Protection | IP20 |
| | Environment | Indoor |
| Approvals | CE | v |
| | RoHS | v |
| | UL | v |
| Warranty | Warranty | 5 Year |
| Package Weight & Dimensions | W x H x D (cm) | 17.00 x 20.00 x 1.50 |
| | Weight (kg) | 0.12 |
