K-Array Kommander KA104LIV 4x2500W(4Ohm)

Forsterker med DSP, Dante™ Ready

Varenr: KA104LIVE
85 800,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoDokumenter
Beskrivelse

The Kommander-KA104LIVE is the ultimate amplifier platform of K-array electronics, boasting a power output of 4x2500W@4O and the well known DSP functions of the Kommander-KA104. Tailored specifically for the demands of live entertainment scenarios, it features SpeakON and CA-COM connections, ensuring pristine sound quality and complete control over connected line array elements or systems.

Kommander-KA104LIVE not only is designed for live scenarios but also offers portability. It Seamlessly integrates into portable setups for live applications, providing all the processing functionalities of a complete system while offering the convenience and compactness of a portable audio solution.


The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.
K-framework3 is the managing and control software dedicated to professionals and operators looking for a powerful tool for loudspeakers system design and tuning of a large number of units over a wired LAN.

Teknisk info
General
Type 4ch switching mode, Class D Amplifier
Output Power 1 4x 2500 W @ 4 Ohm
Impedance minimum 4 Ohm
Frequency Response 1 20 Hz – 20 kHz (±1 dB)

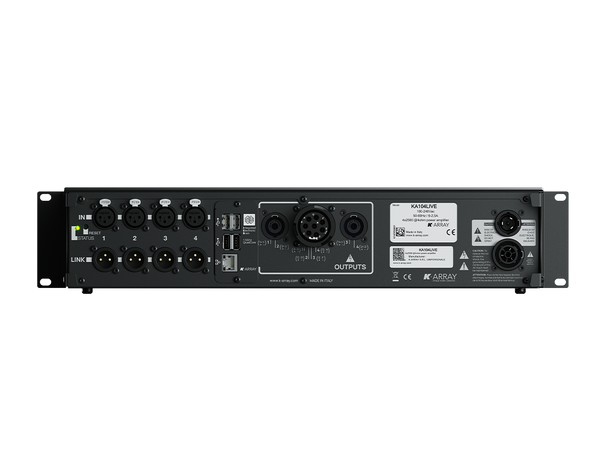

Connectors
Input:
4x XLR-F balanced input
4x XLR-M balanced LINK output
Output:
2x Speakon NL4/1xCA-COM multichannel
Remote connectivity:
1x Ethernet RJ45
4x USB-A
Wi-Fi IEEE 802.11 b/g/n
Built-in DSP Grouping, Input EQ, Output EQ, Signal Routing,
Level adjustment, Dynamic Limiters, Delay
Remote control
Wi-Fi dedicated K-array Connect mobile app
Ethernet wired K-framework3 multiplatform
design and tuning software
MAINS Operating Range 100-240V ~ AC, 50-60 Hz with PFC
via powerCON TRUE connector with power link
Power Consumption 600 W @ 4 O load, Pink noise, 1/8 rated power
Protections
Thermal protection, output short circuit, RMS
output current protection, high frequency
protection, power limiter, clip limiter.
