K-Array Azimut Professional Sound System Black, Bluetooth, WiFi, Spotify connect K-Array Azimut Professional Sound System Black, Bluetooth, WiFi, Spotify connect

K-Array Azimut Professional Sound System

Black, Bluetooth, WiFi, Spotify connect

Varenr: KAMUT2V25
46 800,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoAndre kjøpte også
Beskrivelse

Azimut-KAMUT2V25

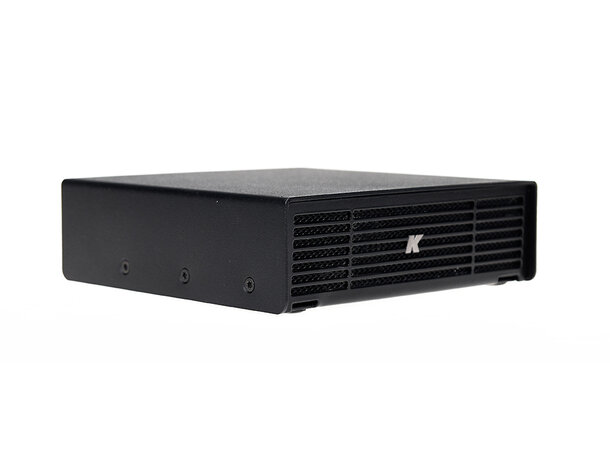

The largest system of the discreet line is the Azimut-KAMUT2V25, designed for when more power and a longer throw is required from an invisible profile, composed of two 25cm-long Vyper-KV25 loudspeakers, an ultra-compact Truffle-KTR26 subwoofer and a 14x14x2” Kommander-KA02 amplifier and a covert remote control.

The Azimut-KAMUT2V25 is designed for larger rooms with higher sound requirements needed in a compact form, such as pubs, small conference and boardrooms, lounges and hotel lobbies.



Plug and Play

Easy to use and quick to install, our active systems are developed with the end user in mind. There is no need to manually configure the system; it's ready to go as soon as it's connected so simply switch it on.

[+]

Color Customizable

We have the ability to customize your project by color matching your system to any RAL code to help you to better integrate the speakers into a wide variety of venues.

[+]

Visually Discreet

For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.

[+]

Premium Finishes

Similar to high-end fashion accessories and jewelry, our products undergo the most advanced coating process for a more beautiful and lustrous look.

[+]

Technology

Multi-Room Setup

For applications that require audio coverage in multiple zones, we have designed a complete system that is capable of connecting all the speakers to one network.

[+]

Wi-Fi and Bluetooth Connectivity

With Wi-Fi and Bluetooth connectivity, users are able to stream preferred music directly from a mobile device, music library or from the web - allowing access to hundreds of thousands of songs.

[+]

Pure Array Technology

Composed of closely-spaced, full-range sound sources, our line array elements feature demonstrate pure line array characteristics.

Specifications

GENERAL

  • TypeComplete full-range audio solution with stand-alone amplifier
  • Components1x Kommander-KA02 amplifier, 1x Truffle-KTR26 subwoofer, 2x Vyper-KV25 line array speakers, 1x K-AUDIOCTRL remote control w/cable
  • Frequency Response45 Hz – 20 kHz (-6 dB)
  • SensivitySubwoofer: 89.4 dB SPL (1W, 1m), Line array speakers: 81.9 dB SPL (1W, 1m)
  • Maximum SPL110 dB peak
  • Maximum Analog Input LevelBAL input (+4 dBu) max input level @ 3.20 V, unBAL input (-10 dBV) max input level @ 2.24 V
  • CoverageSubwoofer: omni, Mid-high speakers: 110° horizontal, 10° vertical

INTERNAL PROCESSING

  • Input Sample Rate & ResolutionUp to 96 kHz @ 24 bit with internal SRC and jitter correction
  • Built-in DSPRemote control with dedicated APP for setting levels, equalization, signal distribution and wireless connectivity

INTERNAL AMPLIFIER MODULE

  • Type4 ch. switch-mode, class D
  • Peak Output Power4 x 50W @ 4O
  • AC Input Operating RangeDedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 5 A DC output
  • ProtectionsOver Temp. (Power Limiting – Thermal Shutdown), Short Circuit/Overload Output Protection, Power Limiting, Clip Limiter/Permanent Signal Limiter, High Frequency Protection
  • Mains Connector5.5 mm DC plug (24 V, 5 A)

CONTROLS & CONNECTIVITY

  • Input signal3.5 mm jack unBAL analog stereo input, 2x BAL input: MC 1.5/ 3-ST-3.81 BK Phoenix connector, Optical Toslink digital input
  • GPIOMC 1.5/ 5-G-3.81 BK Phoenix connector
  • Data4x USB-A 2.0, 1x RJ45 Ethernet
  • WirelessBluetooth 4.1 Low Energy, Wi-Fi IEEE 802.11 b/g/n

DIMENSIONS

  • Truffle-KTR26:181.5 x 176 x 322 mm (7.15 x 6.93 x 12.68 in)
  • Vyper-KV25:39.5 x 250 x 21.5 mm (1.55 x 9.84 x 0.83 in)
  • Kommander-KA02:144 x 45.5 x 144 mm (5.7 x 1.8 x 5.7 in)
  • Remote:22 x 10 x 12 mm (0.8 x 3.9 x 0.4 in)

WEIGHT

  • Truffle-KTR26:3.5 kg (7.72 lbs)
  • Vyper-KV25:0.450 kg (0.99 lbs)
  • Kommander-KA02:0.5 kg (1.10 lbs)
  • Remote:0.045 kg (0.10 lbs)

COLOR & FINISHES

  • Subwoofer and amplifier:Black textured powder paint
  • Line array speakers:black, white, custom RAL & polished and 24K gold stainless steel finishes
  • Notes for data:
    Passive loudspeakers require dedicated presets loaded onboard K-array amplifiers.
    New materials and designs are introduced into existing products without previous notice.
    Present systems may differ in some respects from those presented in this catalog.



Teknisk info
- A pair of essential design speakers to reproduce the mid-high frequency range
- Sub woofer composed by a 6” cone and a passive radiator for low frequencies
- amplifying module which allows two different kinds of input (RCA and XLR) and volume managing
