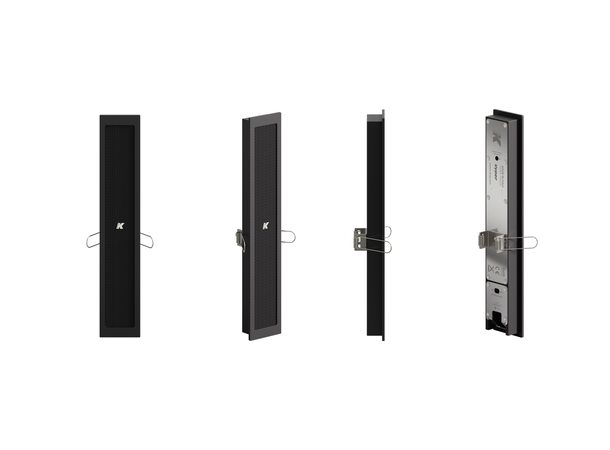

K-Array Vyper-KV25R II Ultraflat Line-array speaker Black

K-Array Vyper-KV25R II

Ultraflat Line-array speaker Black

Varenr: KV25R II
10 270,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoAlternativer
Beskrivelse

The Vyper-KV25R II is an ultra-flat passive loudspeaker comprised of four 1” neodymium magnet transducers each, housed in an elegant yet sturdy aluminum chassis, designed for in-wall recessed installations.
The four closely-spaced cone drivers provide true line array characteristics: phase coherence, low distortion and focused listening in both the near field and at a distance from the speaker.

Two different values of impedance (8O – 32O) allow to connect up to 8x Vyper-KV25 II loudspeakers at 32O impedance to the same 4O amplifier output channel, which eliminates the need for 70V lines for wide distributed installed systems where pristine sound, intelligibility and elegance are mandatory.

All Vyper-KV25 components are designed by the K-array R&D department and are custom-made under the K-array quality control system.

Teknisk info

Specifications

General

  • Type:

    Line array

  • Transducers:

    4 x 1" neodymium magnet woofers

  • Frequency Response:

    150 Hz – 18 kHz (-6 dB)

     (1)

  • Max SPL:

    108 dB (peak)

     (2)

  • Rated Power:

    75 W

  • Coverage:

    V. 25° | H. 140°

  • Connectors:

    2PIN euroblock connector (included)

  • Nominal Impedance:

    8 O / 32 O selectable

Handling and Finishes

  • Dimensions (W x H x D):

    50 x 270 x 37 mm (1.95 x 10.63 x 1.45 in)

  • Weight:

    0.4 kg (0.88 lb)

  • Material:

    Aluminum

  • Colors:

    Black, White, Custom RAL

  • Finishes:

    24K Gold, Polished, Brushed

Regulations

  • IP Rating:

    IP65

  • (1) With dedicated preset
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
