K-Array Vyper-KV52RW II Ultraflat Line-array recessed White K-Array Vyper-KV52RW II Ultraflat Line-array recessed White

K-Array Vyper-KV52RW II

Ultraflat Line-array recessed White

Varenr: KV52RW II
14 300,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoAndre kjøpte også
Beskrivelse

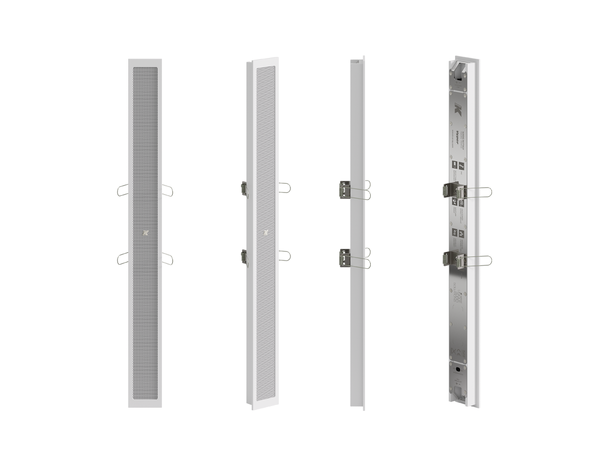

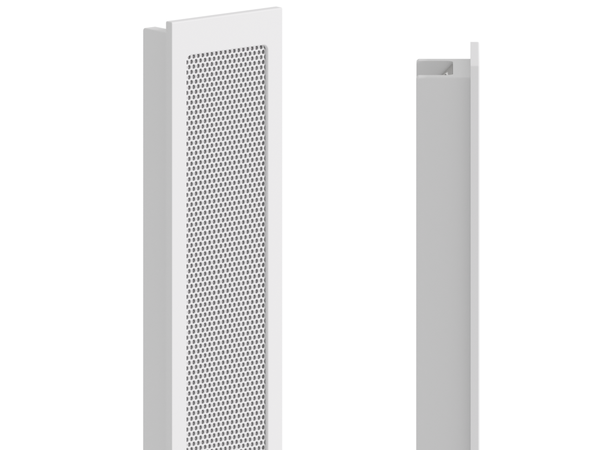

The Vyper-KV52RII is an ultra-flat passive loudspeaker comprised of eight 1” neodymium magnet transducers, housed in an elegant yet sturdy aluminum chassis designed for in-wall recessed installations.
The eight closely-spaced cone drivers provide true line array characteristics: phase coherence, low distortion and focused listening in both the near field and at a distance from the speaker.

Two different values of impedance (16O – 64O) allow to connect up to 16x Vyper-KV52 II loudspeakers at 64O impedance to the same 4O amplifier output channel, which eliminates the need for 70V lines for wide distributed installed systems where pristine sound, intelligibility and elegance are mandatory.

All Vyper-KV52R II components are designed by the K-array R&D department and are custom-made under the K-array quality control system, in Italy.

Teknisk info

Specifications

General

  • Type:

    Line array

  • Transducers:

    8 x 1" neodymium magnet woofers

  • Frequency Response:

    150 Hz – 18 kHz (-6 dB)

     (1)

  • Max SPL:

    114 dB (peak)

     (2)

  • Rated Power:

    150 W

  • Coverage:

    V. 10° | H. 140°

  • Connectors:

    2PIN euroblock connector (included)

  • Nominal Impedance:

    16 O / 64 O selectable

Handling and Finishes

  • Dimensions (W x H x D):

    50 x 510 x 37 mm (1.95 x 20.08 x 1.45 in)

  • Weight:

    0.8 kg (1.76 lb)

  • Material:

    Aluminum

  • Colors:

    Black, White, Custom RAL

  • Finishes:

    24K Gold, Polished, Brushed

Regulations

  • IP Rating:

    IP65

  • (1) With dedicated preset
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
  • Passive loudspeakers require dedicated presets loaded onboard  K-array amplifiers.
    New materials and design are introduced into existing products without previous notice.
