K-Array Dragon-KXT12P

12"Passive Triaxial+15" Passive Radiato

Varenr: KXT12P
54 600,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse

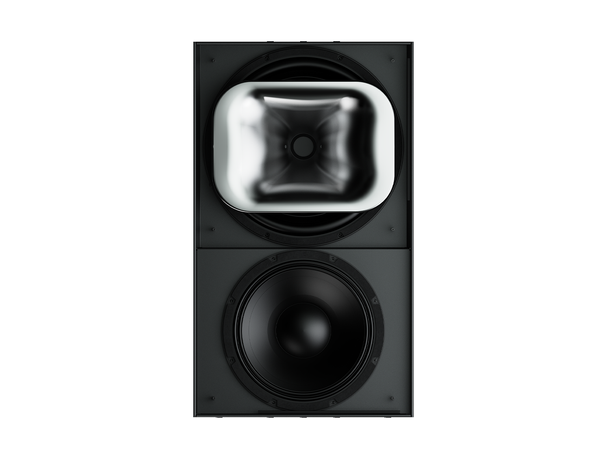

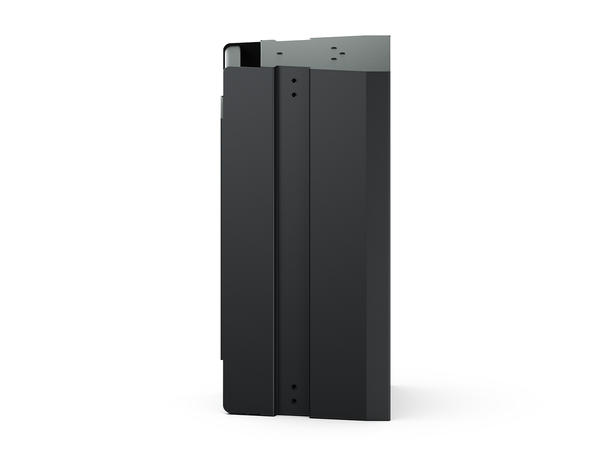

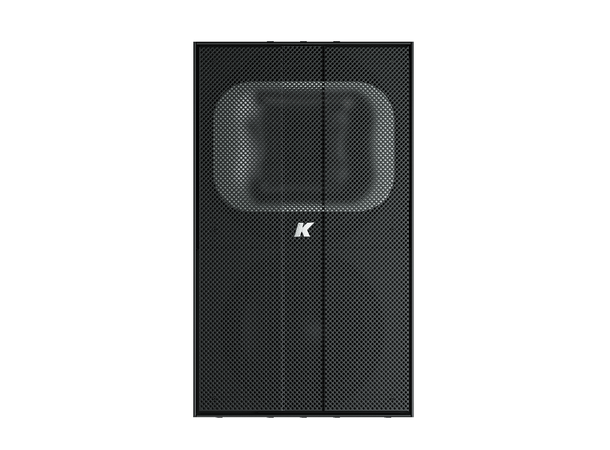

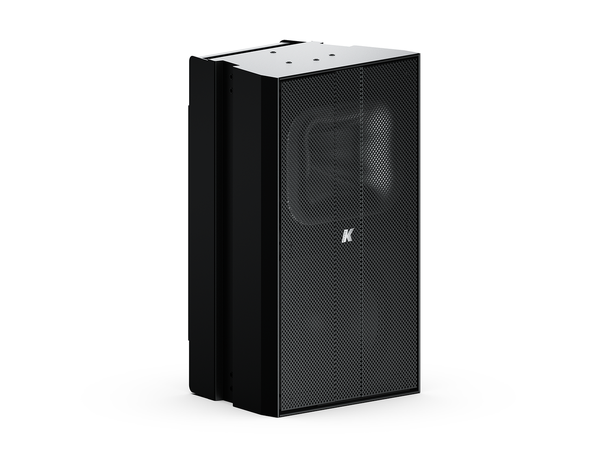

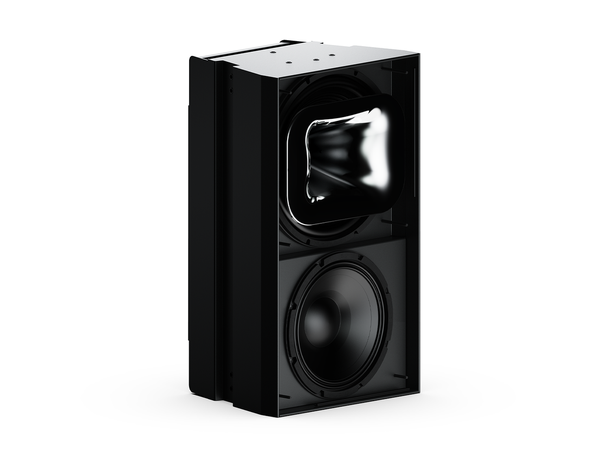

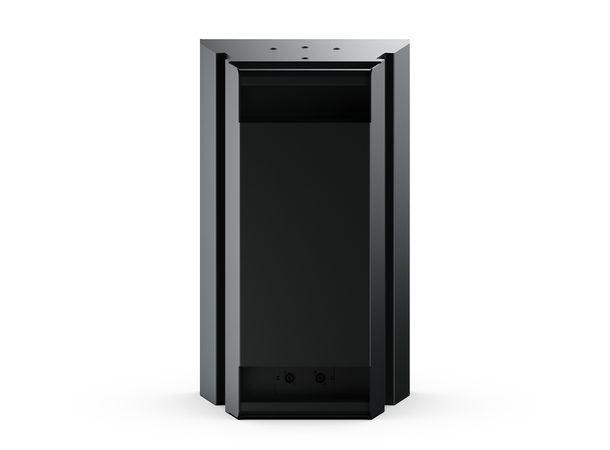

The Dragon KXT12P sets a new standard with its cutting-edge design and high-performance capabilities. Equipped with a 12" woofer and a tri-axial assembly featuring a 3" mid-frequency and 2" high-frequency compression driver, aligned with a 15" passive radiator, it delivers an exceptional SPL of 141dB with stunning clarity across a wide frequency range.

Built with a durable aluminum closed cabinet, the KXT12P is outdoor rated, ensuring reliable performance in diverse conditions. Its adjustable horn supports vertical, horizontal, and array configurations, while its sleek design makes it perfect for hospitality venues, live events, and demanding installations.

Teknisk info

Specifications

General

  • Type:

    Point source

  • Transducers:

    12" neodymium magnet woofer
    Tri-axial 3" compression driver (MF) + 2" compression driver (HF) + 15" passive radiator

  • Frequency Response:

    73 Hz - 20 kHz (-6dB)
    60 Hz - 20 kHz (-6dB) -7.5dB max SPL FR

     (1)
  • Max SPL:

    141 dB (peak) half-space

     (2)
  • Rated Power:

    1200 W

  • Coverage:

    V. 40° - H. 60° (Rotatable w/ screws)

  • Connectors:

    2 x SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)

  • Nominal Impedance:

    8 O

Handling and Finishes

  • Dimensions (W x H x D):

    432 x 735 x 353mm (17 x 28.9 x 13.9 in)

  • Weight:

    24 kg

  • Material:

    Stainless Steel

  • Colors:

    Black, Custom RAL

Regulations

  • IP Rating:

    IP54

  • (1) With dedicated preset.
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
