K-Array KY102 Black 100cm, 4 cone line array element K-Array KY102 Black 100cm, 4 cone line array element

K-Array KY102 Black

100cm, 4 cone line array element

Varenr: KY102
59 800,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse

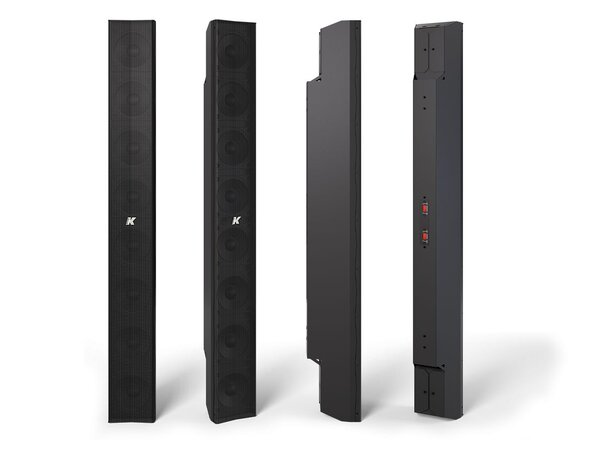

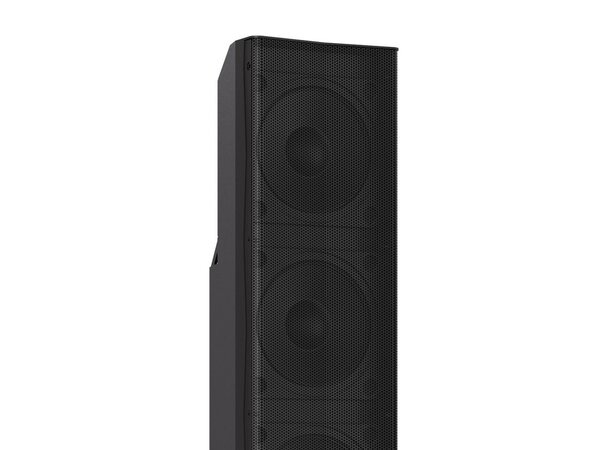

The widest line array in our column speaker collection, the Kayman-KY102 is a passive speaker comprised of eight closely-spaced 4” neodymium magnet woofers.
Capable of delivering SPL levels up to 138dB Kayman-KY102 is also our most powerful column.
A true line array, the KY102 has a variety of rigging accessories to offer different linking and hanging options for vertical and horizontal line array configurations.
It is also designed for outdoor installation with an IP64 rating.

The main product models and codes are:
KY102  black model
KY102W  white model
KY102X customizable color and finish (box + grill)
new! KY102M, KY102MW, KY102MX (only RAL colors) = MARINE TREATMENT (on request)

All Kayman-KY102 components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

Teknisk info

Specifications

General

  • Type:

    Line array

  • Transducers:

    8 x 4" neodymium magnet woofers

  • Frequency Response:

    120 Hz – 20 kHz (-6 dB)

     (1)
  • Frequency Response (Full-range preset):

    70 Hz – 20 kHz (-6 dB)




     (2)
  • Max SPL:

    138 dB (peak)

     (3)
  • Max SPL (Full-Range preset):

    126 dB (peak)

     (4)
  • Rated Power:

    1200 W

  • Coverage:

    V. 7° - 30° | H. 90°

  • Connectors:

    SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)

  • Nominal Impedance:

    8 O / 32 O selectable

Handling and Finishes

  • Dimensions (W x H x D):

    116 x 1000 x 134 mm (4.6 x 39.4 x 5.3 in)

  • Weight:

    14.9 kg (32.8 lb)

  • Material:

    Stainless Steel

  • Colors:

    Black, White, Custom RAL

  • Finishes:

    24K Gold, Polished, Brushed

Regulations

  • IP Rating:

    IP64

     (5)
  • (1) With dedicated preset.
  • (2) With dedicated FULL-RANGE preset.
  • (3) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
  • (4) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
  • (5) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant)
  • Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

  • New materials and design are introduced into existing products without previous notice.
