KGEAR GCF3 3" In-ceiling/In-wall speaker 3" Two way 8Ohm Speaker Black KGEAR GCF3 3" In-ceiling/In-wall speaker 3" Two way 8Ohm Speaker Black

KGEAR GCF3 3" In-ceiling/In-wall speaker

3" Two way 8Ohm Speaker Black

Varenr: GCF3W
840,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse

 GCF3

3" Ceiling Speaker

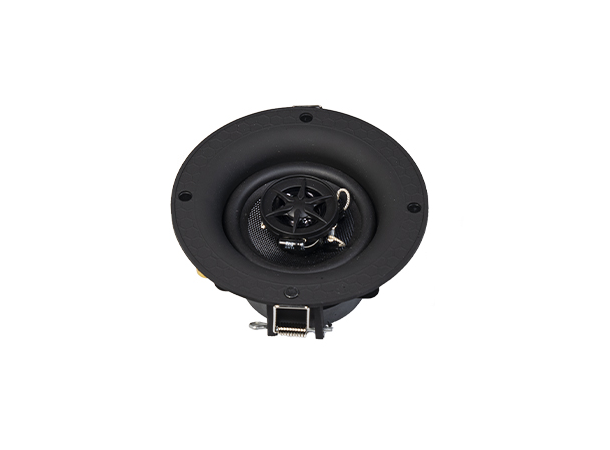

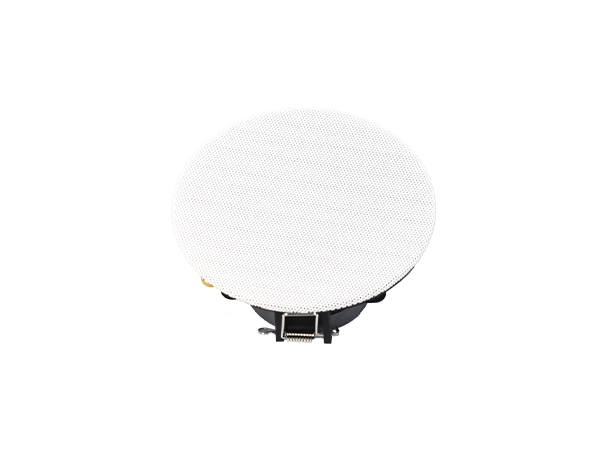

GCF3 is a tiny but performing 3" 2-way full range passive speaker for in-ceiling or in-wall installation. Thanks to its circular frameless grille design and its extra small format, GCF3 is a very practical and discrete solution for architectural installations that require multi-point sound distribution.

The spring clamps and the magnetic grille allow fast and tool-free installation and its 16 ohm impedance allows multiple speaker connection to KGEAR amplifiers (GA201, GA41/41L or GA43/43L) without any transformer, preserving audio quality.

To obtain the best performance and low frequency extension, combine GCF3 with a KGEAR subwoofer (GS6, GCF8S, GWF8S). Available in black or white colour, the frameless magnetic grille can be painted to match any environment.



















Teknisk info

Tech specs

GENERAL

Rated Power (@8O): 40W
Peak power (@8O): 80W
Nominal Power (@100V): 2/4/8/16W taps (GCF6T - GCF6TW)
Nominal Power (@70V): 1/2/4/8W taps (GCF6T - GCF6TW)

Impedance: 8O
Frequency Range: 70Hz – 20KHz (-3dB average)
                           60Hz – 20KHz (-10dB average)
Maximum SPL(1): 106dB (peak)
Coverage: 120° conical

TRANSDUCERS

5.25" coax ferrite magnet woofer
0.75" titanium dome tweeter

AUDIO I/O

Gold plated push terminals

PHYSICAL OVERVIEW

Ø Outer: 196 mm (7.7 in)
Ø Inner 179 mm (7 in)
Depth: 75 mm (3 in)
Weight: 1.08 kg (2.4 lb)
Material: ABS
Colors: White (GCF5W - GCF5TW)
           Black (GCF5 - GCF5T)
