Tech specs
GENERAL
Power Handling: 1500W subwoofer + 400W satellite (200+200W)
Peak Power: 3000W subwoofer + 800W satellite (400+400W)
Impedance: 4O subwoofer + 32O each satellite element
Frequency Range: 30Hz – 20KHz (-6dB average)
Maximum SPL(1): 137dB (peak)Continuos SPL: 125 dB
Coverage: V.30° - H.90°
TRANSDUCERS
Subwoofer: 2x18” ferrite magnet
Mid High Frequency: 2x12” coaxial with 1” compression driver ferrite magnet

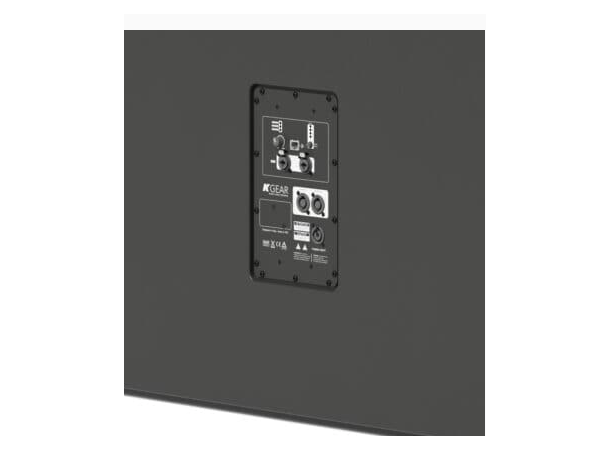

AUDIO I/O
Analog balanced I: 2 x Combo jack-XLR female line
Analog power O: 1 x Speakon to drive a GPZ Passive System in a stereo configuration
AUDIO CONTROLS
Volume potentiometer | RJ45 connector | DSP can be remotely
controlled via an Ethernet connection through Powersoft ArmoniaPlus
Software
AMPLIFIER
Type: 4-channel Class-D audio amplifier
Power: 4 x 1500W @4ohm
AC input: 100-240V AC @50-60Hz
Max power consumption: 500W Rated Load (1/8 Max Output Power)
Protections:
Thermal Protections (Power limiting - Thermal Shutdown),
Short-circuit/overload output protections, stationary high frequency
protection, peak limiter, RMS limiter, frequency dependent RMS limiter,
Clip limiter
PHYSICAL OVERVIEW

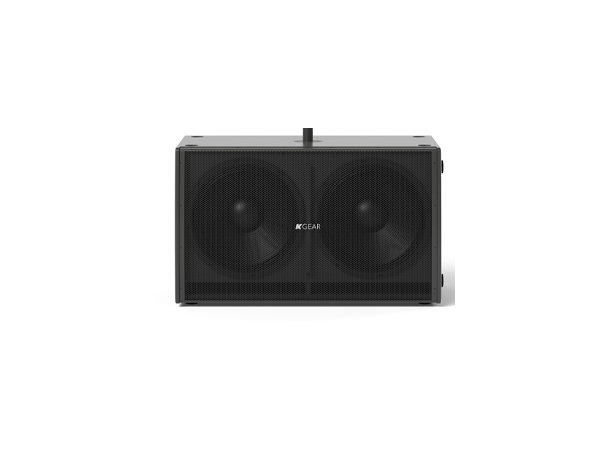

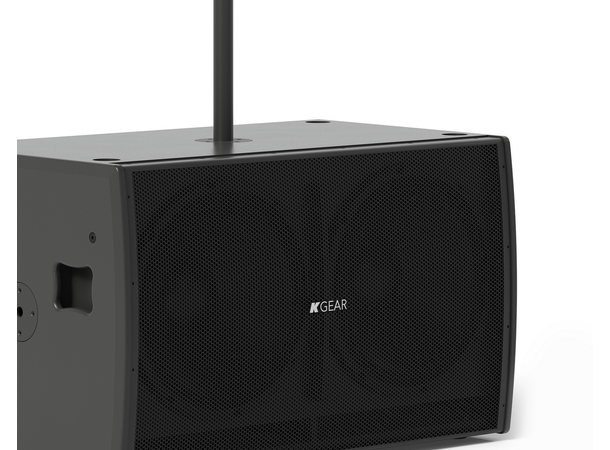

SUBWOOFER
Width: 1035mm (40,75in)
Height: 614mm (24,17in) Depth: 600mm (23,6in)
Weight: 59kg (130,07lbs)
Material: birch plywood
Rating: IP41
