The MADRIX STELLA is a dedicated control interface for DMX512 and Art-Net or Streaming ACN that is designed for high quality and practicability in permanent LED installations.
Art-Net / Streaming ACN
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network.
2 DMX-IN/OUT

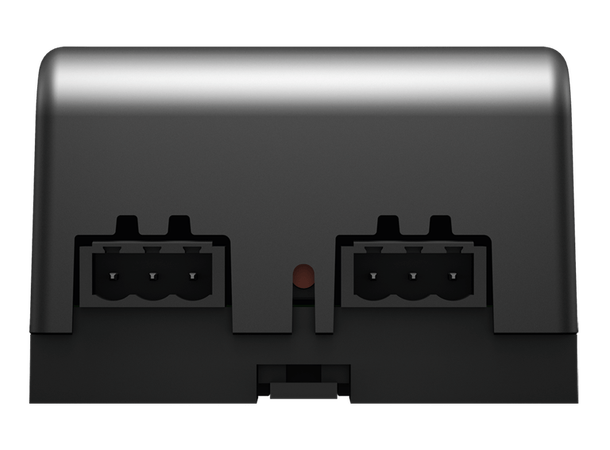

Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.
Easy Configuration

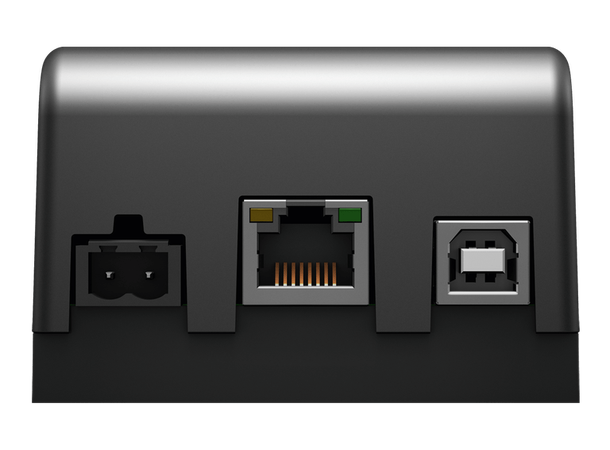

MADRIX STELLA offers powerful features. Managing the device is still quick and easy. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
Sync Mode
MADRIX Software and hardware allow you to fully synchronize Art-Net data for all output ports and across multiple devices to get an optimal image on the LEDs without visual interruptions.
MADRIX DMX512 USB Interface
Alternatively, you can choose to connect the unit as a plug-and-play solution to your computer and the MADRIX Software using any USB 2.0 port.
3rd-Party Controllers
MADRIX STELLA complies with the official Art-Net and Streaming ACN specifications and can be used as a regular unit with your other consoles, controllers, or software solutions.
Designed For DIN Rails Or Walls

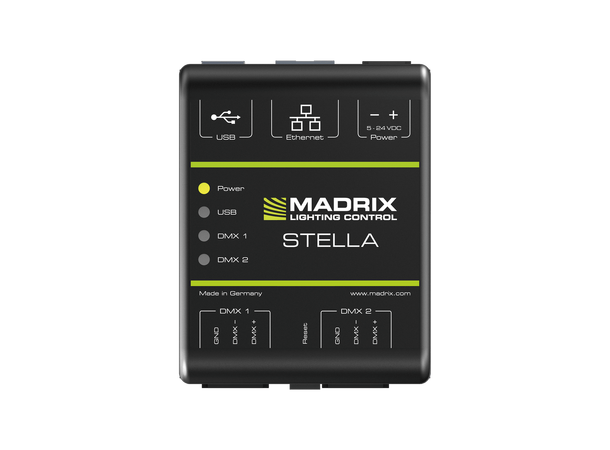

Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 6 indicators quickly show the device status with the option to turn them off.
Invaluable Features
The device is ready within seconds after startup. HTP Merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.
