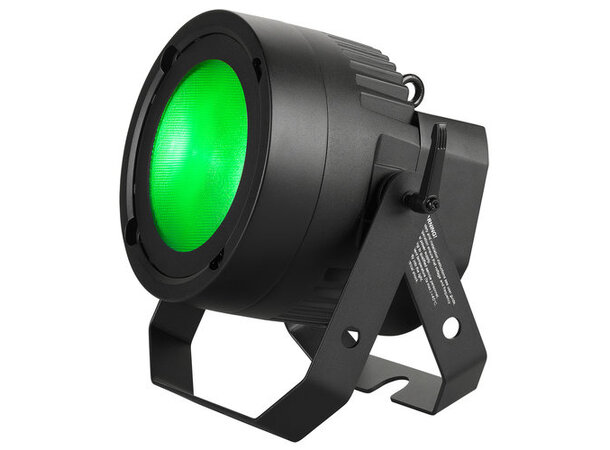

The RUSH PAR 3 RGB is a bright single-lens color LED PAR can light fixture. With a 36 watt COB RGB LED, the RUSH PAR 3 RGB offers fully premixed color for use in wash and key lighting applications. A magnetically attached beam angle reducer lens allows the RUSH PAR 3 RGB to offer both 80° and 14° beam angle options, and the fanless design provides quiet operation in sound-sensitive environments.

The RUSH PAR 3 RGB includes electronic dimming and strobe, a bracket for floor or truss mounting, and a rugged, lightweight aluminum construction, making it ideal for live shows, performing arts, house of worship, bars, nightlife, and architectural installations. A version finished in white is also available for décor matching.

• Single-lens 36W LED PAR with premixed color
• Removable magnetic lens for multiple beam angles
• Fanless design for quiet operation

Features

• 36 watt COB RGB LED
• Fully premixed color
• Magnetically attached removable beam angle reducer lens
• 80° and 14° beam angles
• Electronic dimming and strobe
• Fanless design for quiet operation
• Bracket suitable for floor or truss mounting
• Lightweight aluminum construction (4 kg / 7.5 lbs.)

Tech Specs

PhysicalDimensions (L x W x H): 250 x 265 x 165 mm (9.4 x 10.6 x 6.5 in.)Weight: 3.4 kg (7.5 lbs.)

Dynamic EffectsDimming: 0 – 100%, coarse & fine controlShutter: Strobe & pulse effects, instant open and blackoutColor: 8 bit RGB color mix

Control and ProgrammingControl system: USITT DMX512/1990 with RDMDMX channels: 9RDM compliance: ANSI/ESTA E.120Interface: Control panel with backlit LCD display

OpticsBeam / field angle without lens : 83°/106°Beam / field angle with lens : 14.5°/33°

ConstructionColor: BlackHousing: Cast aluminumIP rating : IP 20

InstallationMounting points : Adjustable bracket, surface or truss mountLocation: Indoor location onlyOrientation: AnyMinimum distance to illuminated surfaces: 0.5 m (20 in.)Minimum distance to combustible materials: 0.1 m (4 in.)

ConnectionsAC power input/output: Neutrik PowerConDMX & RDM data in/out : 5-pin locking XLR

ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeMaximum total power consumption: 30 WTypical half-cycle RMS inrush current: 7.8 ARecommended Miniature Circuit Breaker when power linking* : Type D*Per IEC 60898/UL489/CSA C22.2 No. 5

Typical Power and Current100 V, 60 Hz: 30 W, 0.5 A, PF 0.615120 V, 60 Hz: 30 W, 0.4 A, PF 0.599230 V, 50 Hz: 30 W, 0.3 A, PF 0.496Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.

ThermalCooling: Forced air, temperature-regulatedMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min): 0°C (32° F)

ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR 15 Class ACanadian safety : CSA C22.2 No. 166Canadian EMC : ICES-003 Class AAustralia/NZ: RCM
