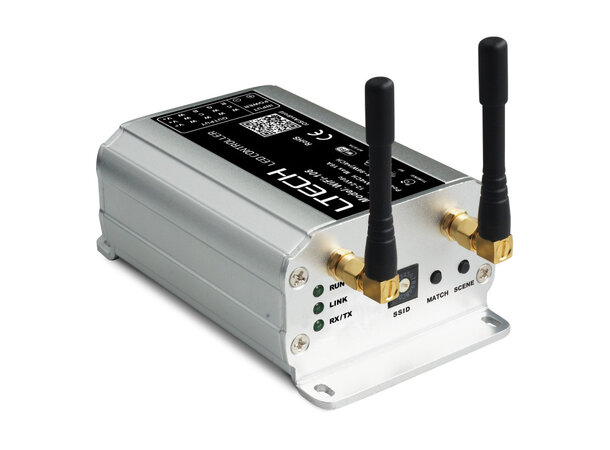

oneeightyoneLED Controller WiFi RGBW

WiFi-106

Varenr: 114739

4 996,-

Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.

Beskrivelse

L-BUS is a WiFi lighting control system, consisted of APPs and WiFi controller. Controls various types of LED lighting products by installing the related App on our Android or iOS mobile devices which support WiFi connection.

With DIM, CT adjustment, RGB and RGBW changing 4 in 1 operation, plus 12 zones control function, you can connect directly or by a router.

Teknisk info

General	Length (mm)	128
	Width (mm)	73
	Height (mm)	45
	Weight (g)	390
	Housing Color	Grey / Black
	Housing Material	Metal
	Mounting	Surface mounted
	Product Type	Wireless
Lighting	Color Range	RGBW
Control	Control	Wifi
	Control	Radio Frequency
	Output Signal	PWM-CV
	Number of Channels	4
	Dimming Range	0~100%
Electronics	Output Voltage	12 ~ 24 V DC
	Output Current Max. (A)	16
	Input Voltage	12 ~ 24V DC
	Output Power (W)	192W @ 12V
	Output Power (W)	384W @ 24V
	Output Current (mA) max/output	4000
	LED Outputs	4
	Power Supply	N/A
	Input Domain	DC
Environmental	Ingress Protection	IP20
	Operating Temperature	-30 ~ +55 °C
	Environment	Indoor
Approvals	CE	v
Logistics	HS Code	8537109899
EU Declaration of Conformity	2011/65/EU Restriction of Hazardous Substances Directive (RoHS) + 2015/863/EU	v
	2014/53/EU Radio Equipment Directive (RED)	EN 60950-1
	2014/53/EU Radio Equipment Directive (RED)	ETSI EN 301 489-3 V1.6.1:2013
	2014/53/EU Radio Equipment Directive (RED)	ETSI EN 301 489-1 V2.2.0:2017
	2014/53/EU Radio Equipment Directive (RED)	ETSI EN 300 440 V2.1.1:2017
Package Weight & Dimensions	W x H x D (cm)	15.00 x 4.60 x 1.80
	Weight (kg)	0.09
