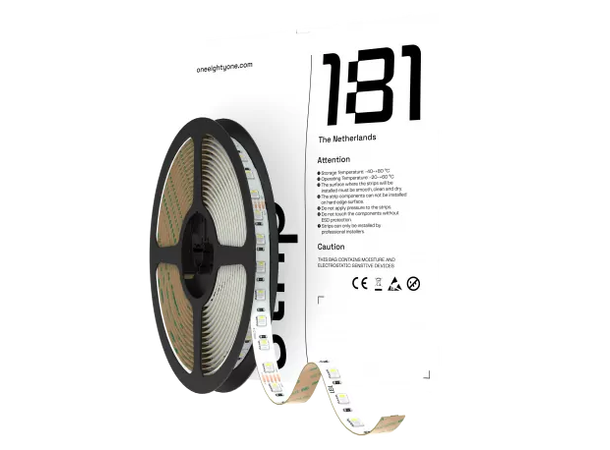

OneEightyOne LED Strip 5m RGBW 2700K

OneEightyOne LED Strip 5m

RGBW 2700K

Varenr: 3121801
2 296,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoDokumenter
Beskrivelse
Dette er en 24V stripe i RGBW CCT 2700K - Varmhvit - og inneholder 70 4-i-1 SMD5050 LEDs/m. Stripen kan kobles til en hvilken som helst 24V PSU. Avhengig av driveren kan stripen dimmes. Lysdiodene er plassert i en 2-trinns MacAdam-ellipse. Kutteseksjonen er hver 10. cm. Hver stripe er utstyrt med en 3M dobbeltsidig selvklebende tape.
Teknisk info
General Length (mm) 5000
Width (mm) 12
Height (mm) 2
Housing Color White
Housing Material Copper
Mounting 3M tape
Weight (g) 140
Cutting Interval (mm) 100
Cable Length (cm) 15 cm
Electronics Input Voltage 24 V DC
Power Consumption (W/m) 19.feb
Power Supply External (not included)
Luminous Efficacy 62 lm/W @ 5758K (RGBW)
Lighting Emission Direct
Optics (°) 120
LED Type SMD5050
LED Quantity /m 70
LED Spacing (mm) 14.mar
Color Range RGBW
Color Temperature (Kelvin) 2700 K
Luminous Flux 1200 lm/m @ 5758K (RGBW27), 721 lm/m @ 15790K (RGB),
204 lm/m @ 1000K (R), 416 lm/m @ 8037K (G), 117 lm/m @ 100000K (B),
494 lm/m @ 2741K (W)
TM-21 Projection L80 @ 85 °C (LM80-15), Reported 36000, Calculated 90000
Control Control PWM
Control Units Single pixel
Number of Channels 4
Environmental Storage Temperature -40 ~ +80 °C
Operating Temperature -25 ~ +60 °C
Ingress Protection IP20
Safety Standards EN 62031, IEC 62471
Environment Indoor
Approvals CE v
RoHS v
Package Weight & Dimensions W x H x D (cm) 21.50 x 24.00 x 0.50
Weight (kg) 0.17
Dokumenter
ProdusentSupportDatablad OneEightyOne LED Strip 5m
