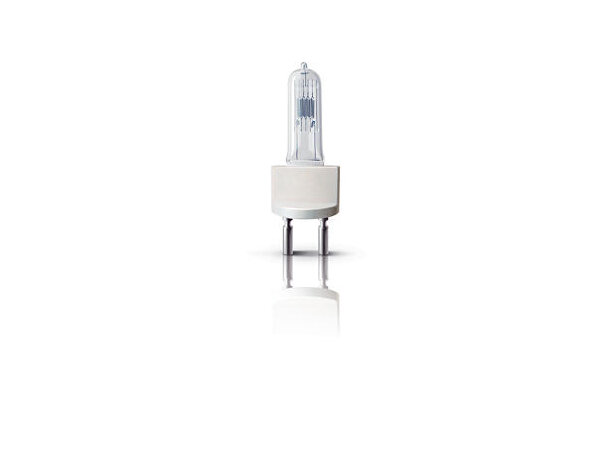

Philips Code  6994Y
LIF Code  CP/75 (CP/55)
Cap-Base  G22
Bulb Finish  Clear
Filament Shape  Bi-Plane
Operating Position  s90
Main Application  Entertainment
Life to 50% failures  480 hr
Light Technical Characteristics
Color Temperature Technical  3200 K
Luminous Flux Lamp  50000 Lm
Electrical Characteristics
Lamp Wattage  2000 W
Voltage  230 V
Dimmable  Yes
Rapid Acting HBC Fuse  16 V
Luminaire Design Requirements
Pinch Temperature  400 (max) C
Product Dimensions
Overall Length C  160 (max) mm
Diameter D  40 (max) mm
Pin Length K  24.89 (min), 26.54 (max) mm
Light Center Length L  75 mm
Pin Diameter P  6.30 (min), 6.40 (max) mm
Pin Distance R  22.22 mm
Filament Dimensions (WxH) [mm]  20x20
Filament Height H  18.5 mm
Filament Length W  17 mm
