| MODEL |
DM-40D / BT |
| TYPE |
2-way bass reflex,
active monitor speaker |
|
|
| AMPLIFIER |
|
| AMPLIFIER TYPE |
Class D with DSP |
| AMPLIFIER OUTPUT |
Left Channel: 19W / 4
Ohm, Right Channel: 19 W / 4 Ohm |

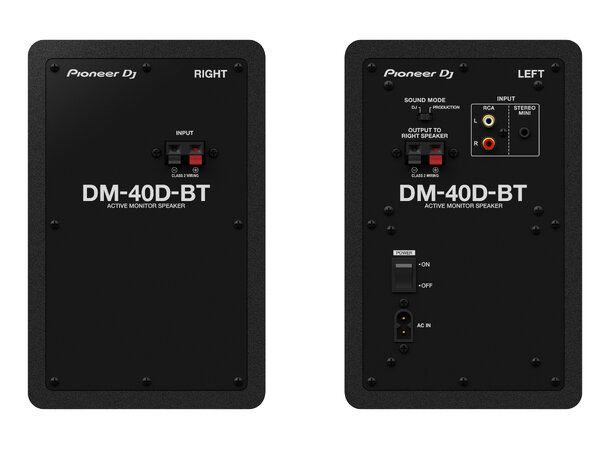

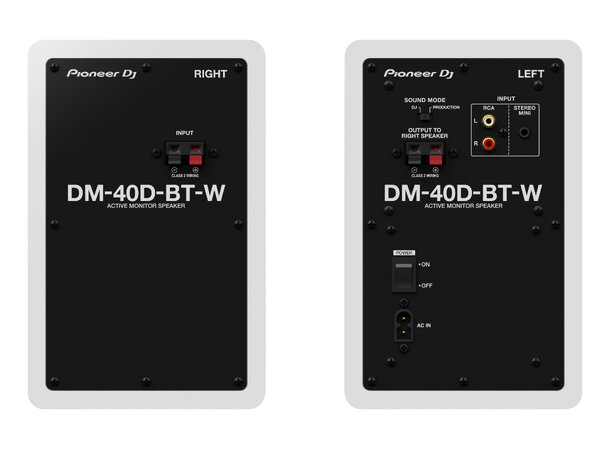

| INPUT CONNECTIONS (BALANCED) |
1/4” TRS jack x 1 |
| INPUT CONNECTIONS
(UNBALANCED) |
RCA x 1, 3.5-mm stereo
mini jack x 1 |
| INPUT INPEDENCE |
10 kOhm |
| OUTPUT TERMINAL |
3.5-mm stereo mini jack
x 1 |
|
|
| SPEAKER |
|
| ENCLOSURE |
Bass reflex |
| ENCLOSURE MATIRIAL |
MDF vinyl laminate |
| WOOFER (LF DRIVER) |
4” (102 mm) fiberglass cones |
| TWEETER (HF DRIVER) |
3/4” (19 mm) soft dome |
|
|
| POWER UNIT / OTHER |
|
| SUPPORTED VOLTAGES |
AC 110 V – 240 V, 50 Hz / 60 Hz |
| POWER CONSUMPTION |
20 W |
| POWER CONSUMPTION DURING STANDBY |
0.3 W or less |
| EXTERNAL DIMENTIONS (W
x H x D) |
Lch: 146 x 227 x 223
mm / 5.75” x 8.94” x 8.78” |
|
Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35” |
| WEIGHT |
Lch: 2.5 kg / 5.5 lbs |
|
Rch: 2.2 kg / 4.9 lbs |
|
|
| Bluetooth |
|
| Version |
Bluetooth®
Specification Ver. 5.0 |
| Maximum transmission distance |
Approximately 10 m in unobstructed circumstances* |
| Frequency used |
2.4 GHz |
| Modulation |
FH-SS (Frequency Hopping Spread Spectrum) |
| Supported Bluetooth
profiles |
A2DP, AVRCP |
| Supported Codec |
SBC, AAC |
|
|
| ACCESSORIES |
Power cord |
|
Audio converter cable
(3.5 mm stereo mini plug to RCA) |
|
Speaker cord |
|
Bottom cushion |
|
Quick Start Guide |
|
Precautions for Use |
|
Warranty |
