Egenskaper:
* Høyeffekt subwoofer med en 18-tommers lavfrekvent driver.
* Kan reprodusere dyp bass helt ned til 35 Hz uten forvrengning.
* Sterke søyler installert i skapet sikrer stivhet mot den kraftigste bassen.
* Krever en aktiv crossover for å stille inn det nødvendige frekvensområdet (forhåndsinnstillinger kan gis fra Pioneer for kombinasjoner som bruker Pioneer XY-152, XY-122, XY-101 og XY-81).
* NL4 INPUT og LINK OUT-tilkoblinger som standard.
* Polmontering for rask oppsett med andre Pioneer-produkter.
* Robust kabinett laget av førsteklasses multilaminatbjørk kryssfiner.

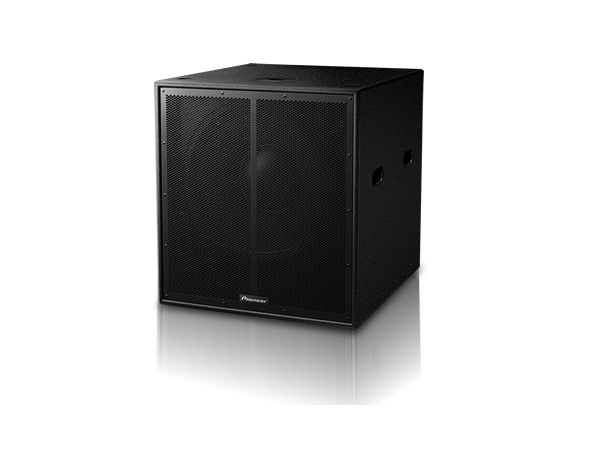

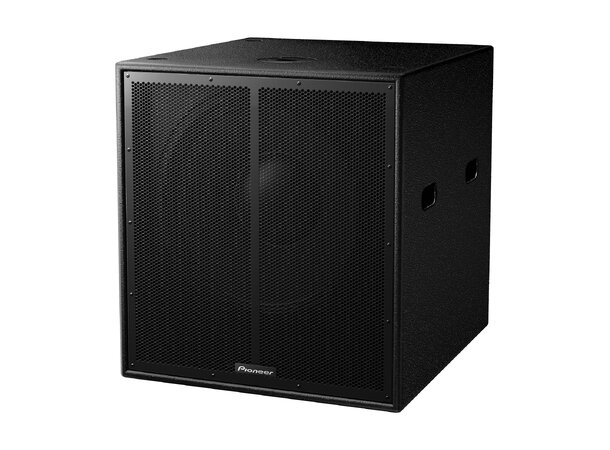

Specification of XY-118S
| Enclosure Type | Single driver, reflex-loaded subwoofe |
|---|
| Frequency Response | 35 Hz to 150 Hz |
|---|
| Sensitivity (1 W/1 m) | 97 dB (half space) |
|---|
| Nominal Impedance | 8 O |
|---|
| Power Handling | 1000 W RMS, 2000 W Program |
|---|
| Maximum SPL | 127 dB cont., 133 dB peak (half space) |
|---|
| Dispersion | - |
|---|

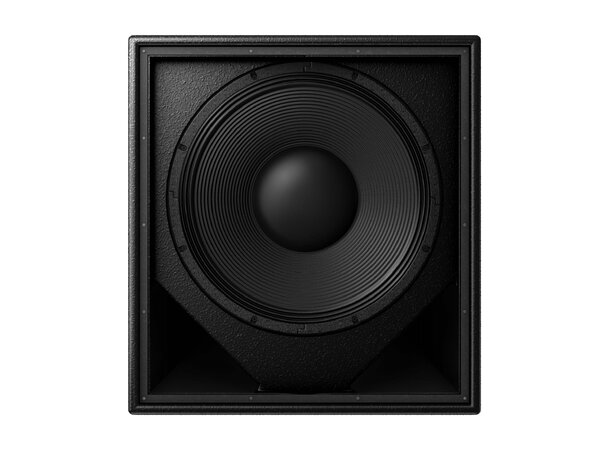

| Driver Configuration | 18 inch (460 mm) LF cone driver |
|---|
| Crossover | - |
|---|

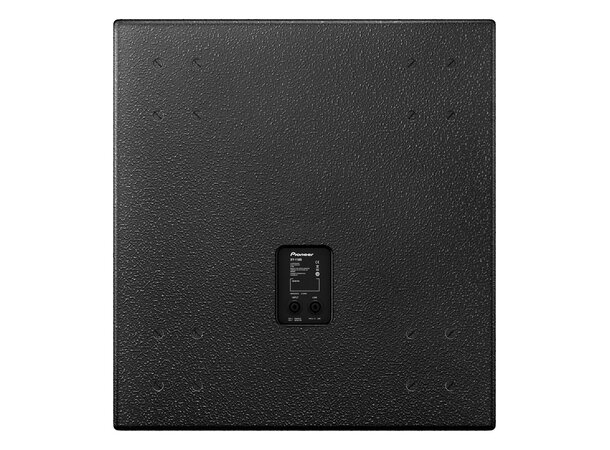

| Connectors | 2 × Neutrik SpeakON™ NL4 |
|---|
| Dimensions (W×H×D) | 590 × 643 × 650 mm
(23.2 × 25.3 × 25.6-inch) |
|---|
| Weight | 52 kg (114.7 lbs) |
|---|
| Rigging and Hardware | 4 × flush handles (2 left/2 right),
1 × M20 polemount socket for mid/high enclosures,
4 × rubber feet (bottom) and 4 ×mating recesses (top),
16 × M8 threaded points for 4 ×castors on rear |
|---|

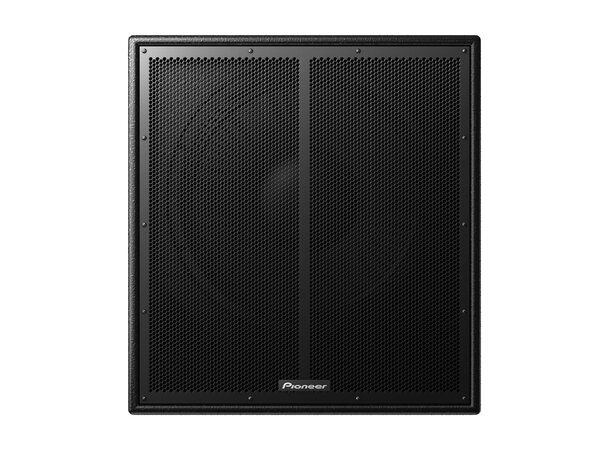

| Grille | Hex punched steel |
|---|
| Enclosure | 18 mm (0.7-inch) birch plywood |
|---|
| Finish | Impact-resistant, Black semi-matt textured |
|---|
| Suggested Power Amplifier | Recommended : K10DSP
Minimum : K3DSP |
|---|
| Accessories | polemount socket cover
(-W model only) |
|---|
