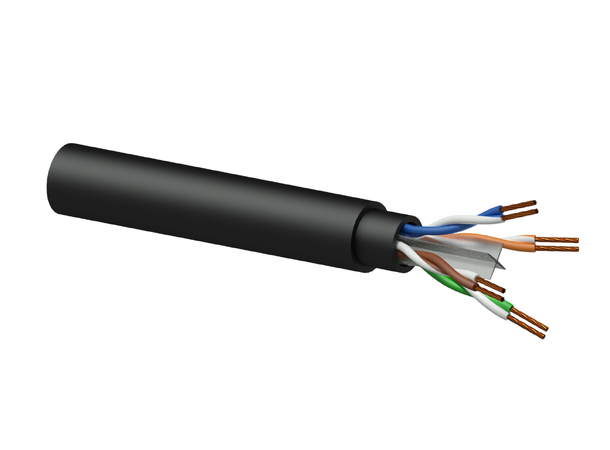

The BCT60U is a CAT6 networking cable featuring a Highflex™ outer jacket which is specifically designed for professional use in highly demanding applications.The conductor section of the BCT60U consists of 4 twisted pairs with stranded copper 24 AWG conductors with a polyethylene ‘+’ shaped separator in between. Thanks to this separator, better performance in terms of crosstalk and system noise can be achieved resulting in a higher bandwidth.The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch. Even after numerous times of winding and unwinding.Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.

PHYSICAL CHARACTERISTICS
Type of cable			U/UTP CAT6 Networking cable
Inner conductor	Material		BC 7 x 0.2 mm (Ø) (OFC)
	Section		0.22 mm²
	American Wire Gauge		24 AWG
	Number of conductors		8 (4 pairs)
	Insulation	Material	HDPE 1.02 mm (Ø)
		Colours	Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown
	Audio	Conductor twisting	Lay length = 30 mm
Separator			Cross web Filling (PE)
Inner jacket	Material		Durable PVC 6.6 mm (Ø)
Outer jacket	Material		Flexible PVC 8.2 mm (Ø)
	Colours		Black

ELECTRICAL CHARACTERISTICS
Dielectric strength		1.5 (KV / 1 min. DC)
Max. Delay / Skew		45 (ns / 100 m)
Nom. Velocity of propagation		65 %
Characteristic impedance		100 O ± 15 O
Max. conductor	DC resistance	140 (O / Km)
	DC resistance unbalanced	5 %
Nom. mutual capacitance		= 5.6 (nF / 100 m)
Pair to ground capacitance unbalance		= 330 (nF / 100 m)
