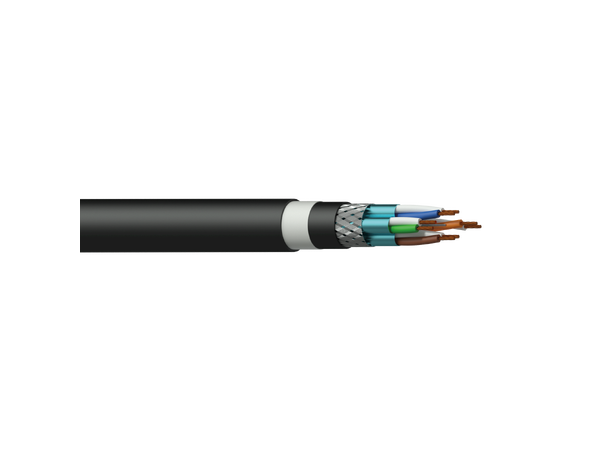

The BCT65S is a CAT6A networking cable featuring a Highflex™ outer jacket which is specifically designed for professional use in highly demanding applications. The conductor section of the BCT65S consists of 4 pairs with solid 24 AWG conductors which are individually shielded by an aluminum foil while the entire section is surrounded by an overall braiding. Due to the double shielding, better performance in terms of crosstalk and system noise is achieved resulting in a higher bandwidth and improved immunity against noise and interference caused by external devices. The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch. Even after numerous times of winding and unwinding. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.

PHYSICAL CHARACTERISTICS
Type of cable			S/FTP CAT6A Networking cable
Inner conductor	Material		BC 7 x 0.20 mm (Ø) (OFC)
	Section		0.22 mm²
	American Wire Gauge		24 AWG
	Number of conductors		8 (4 pairs)
	Insulation	Material	Foamed PE 1.32 mm Ø
		Colours	Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown
	Conductor twisting		Lay length = 30 mm
	Shielding	Aluminium foil	Al-mylar, 100% coverage - 25% Overlap
Separator			Non woven foil
Overall shielding	Braiding		TC 10 x 12 x 0.08 mm (Ø) (OFC)
Inner jacket	Material		Hard PVC
Outer jacket	Material		Soft PVC 8.7 mm (Ø)
	Colours		Black

ELECTRICAL CHARACTERISTICS
Dielectric strength		1.5 (KV / 1 min. DC)
Max. Delay / Skew		25 (ns / 100 m)
Rated voltage		72 V
Nom. Velocity of propagation		74 %
Characteristic impedance		100 O ± 15 O
Max. conductor	DC resistance	95 (O / Km)
	DC resistance unbalanced	2 %
Nom. mutual capacitance		= 5.6 (nF / 100 m)
Pair to ground capacitance unbalance		= 160 (nF / 100 m)
