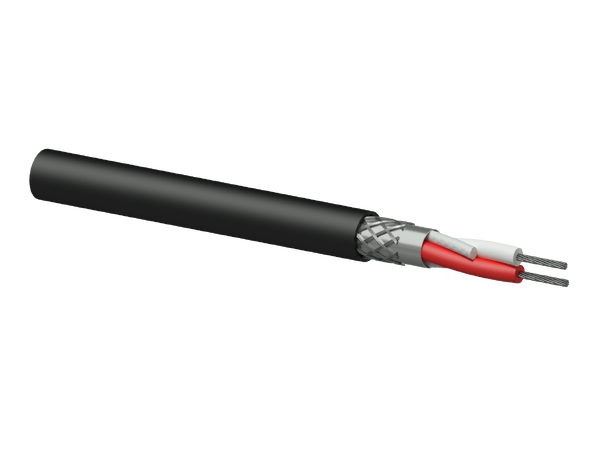

Procab CMX222 Contractor 110O DMX-AES 2 x 0.34mm² / 22 AWG 100m

Procab CMX222 Contractor 110O DMX-AES

2 x 0.34mm² / 22 AWG 100m

Varenr: CMX222-CCA/1
2 760,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoAndre kjøpte også
Beskrivelse

The CMX222-Cca series are 2-core 110 Ohm DMX-AES Digital signal cables compliant to the Cca standards of the Construction Product Regulation (CPR) regarding fire and flammability resistance in fixed installations, minimizing toxic smokes and providing optimal resistance to spreading fire.

In addition to its outstanding fire properties, the outer jacket of the cabling is smooth and durable for easy installation and pulling. The stranding keeps the cable flexible and easy to handle. The cable can be used in both indoor and outdoor or in humid environments.

Teknisk info


Highlights

  • Flamoflex™ IEC 60332-1 installation jacket
  • 110 Ohm Digital signal cable (DMX-AES)
  • Double shielding

Specifications

Type of cable 110 O DMX-AES
Inner conductor TC 17 x 0.16 mm
Inner conductor section 0.342 mm²
Insulation Foamed PE Ø 2.0 mm
Insulation color Red / White
Number of conductors 2
Shielding Al-Mylar + TC 16 x 8 x 0,.1 mm - braiding
Outer jacket NHFR
Outer Jacket Color Black
Outer jacket dimensions ø 5.5 mm
Characteristic impedance 110 Ohm
Lead resistance - 100 m 5,94 Ohm
Dielectric strength 1.5 kV - 1 min
Impedance 110 Ohm
American Wire Gauge 22 AWG
