Product features

Application	AV & IT
Series	Contractor Series

Physical characteristics

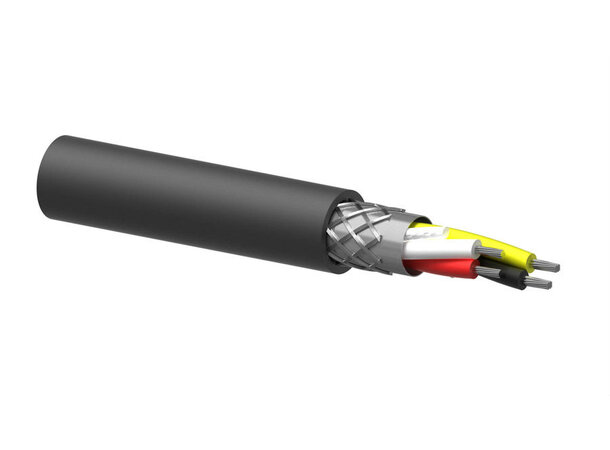

Type of cable			110 O DMX-512 cable
EN50399 CPR Euroclass			Cca-s1a,d1,a1
Inner conductor	Material		TC 7 x 0.25 mm (Ø) (OFC)
	Insulation	Colours	Black / White / Red / Yellow
		Material	Polypropylene 1.7 mm (Ø)
	Shielding	Aluminium foil	Al-mylar, 100% coverage - 25% Overlap
		Braiding	TC 16 x 5 x 0.12 mm (Ø) (OFC)
		Braiding coverage	64 %
Outer jacket	Material		Polyolefin 7.0 mm (Ø)
	Colours		Black
Inner conductor	Section		0.34 mm²
	American Wire Gauge		22 AWG
	Number of conductors		4
	Conductor twisting		Yes

Mechanical characteristics

Temperature range	Mobile installation	- 5 °C till + 80 °C
	Fixed installation	- 15 °C till + 80 °C
Bending radius	Mobile installation	15 x outer diameter
	Fixed installation	15 x outer diameter

Electrical characteristics

Resistance	Insulation	>500 M ? / km
Inductance	Cond/Cond	0.792 nH / m @ 1 (± 10%) MHz
Capacitance	Cond/Cond	45.28 pF / m @ 1 (± 10%) kHz
Resistance	Conductor	Max. 53 ? / km @ --°C
Rated voltage		100 V
Impedance		10% ± 110 ?
Max. operation voltage		250 V
