General Specifications

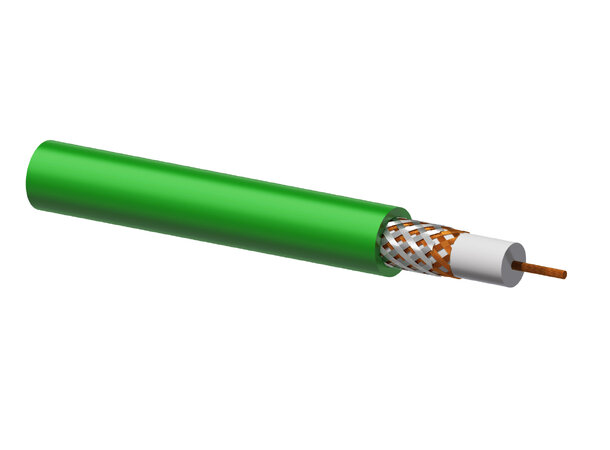

• Type of cable : Coaxial video cable - 75 Ohm - ø 7 mm
• Inner conductor : BC 48 x 0.12 mm
• Inner conductor section : 0.54 mm²
• Isolation : Foamed PE ø 4.5 mm
• Isolation colour : White
• Number of conductors : 1
• Shielding : BC 16 x 7 x 0.12 mm - Braiding
• : TC 16 x 7 x 0.12 mm - Braiding
• Shielding % : 100%
• Outer jacket : Flexible PVC
• Outer jacket colour : Green
• Outer jacket dimensions : ø 7 mm
• Impedance : 75 Ohm
• Printing colour : White
• Printing text : Procab CXV107
• Lead resistance - 100 meter : 4 Ohm
• Shield resistance - 100 meter : 1.5 Ohm
• Lead capacitance @ 1 kHz - meter : 58 pF
• Lead attenuation @ 10 MHz - meter : 0.065 dB
• Voltage resistance : 300 VAC - 15 sec
• Insulation resistance : 10 MOhm / m @ 250V DC - 1 min
• Rated voltage : 30 V
• Velocity of proporation (%) : 76.58%
• American Wire Gauge (AWG) : 20
