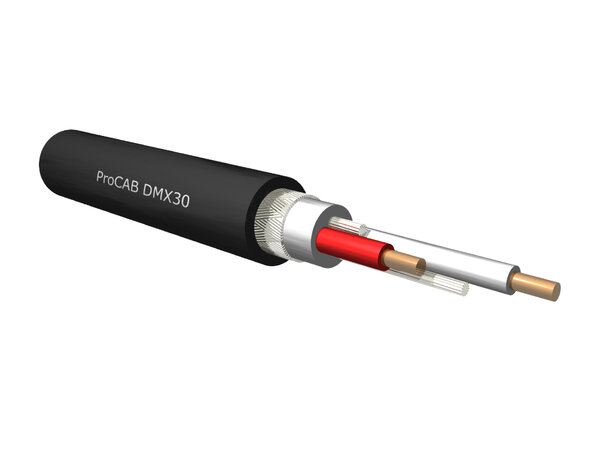

General Specifications

• Type of cable : DMX / AES-EBU 110 Ohm cable
• Inner conductor : BC 20 x 0.12 mm
• Inner conductor section : 0.23 mm²
• Isolation : Foamed PE ø 1.6 mm
• Isolation colour : Red / White
• Number of conductors : 2
• Conductor twisting : Yes
• Shielding : BC 16 x 4 x 0.12 mm - Braiding
• : Aluminum foil
• Shielding % : 100%
• Filling : Cotton yarn
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 6.0 mm
• Printing colour : White
• Printing text : Procab DMX30
• American Wire Gauge (AWG) : 24
