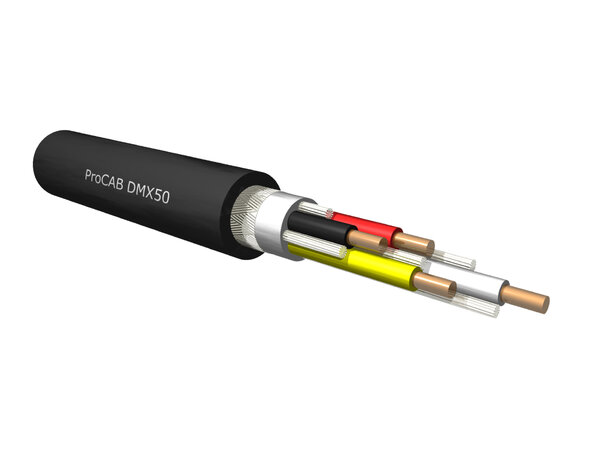

DMX50 er en digital DMX/AES 110ohms kabel.

General Specifications

• Type of cable : DMX / AES-EBU 110 Ohm cable
• Inner conductor : TC 10 x 0.12
• Inner conductor section : 0.12 mm²
• Isolation : PE ø 1.56 mm
• Isolation colour : Black / Red / White / Yellow
• Number of conductors : 4
• Conductor twisting : Yes
• Shielding : TC 16 x 6 x 0.12 mm - Braiding
• : Aluminum foil
• Shielding % : 100%
• Filling : Cotton yarn
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 6.5 mm
• Printing colour : White
• Printing text : Procab DMX50
• American Wire Gauge (AWG) : 26
• American Wire Gauge (AWG) : 26
