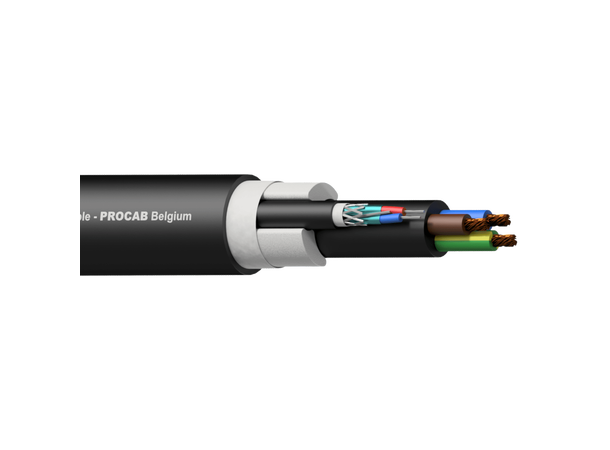

The PAC151 is a hybrid power/audio cable
which can be used in a variety of applications. The cable consists of 3
x 1,5mm² power section and a 2 x 0.22mm² 110 Ohm signal pair. The
signal pair can be used for analog audio, digital audio or DMX. The
power and signal cable each have a separate jacket which makes it easy
to split out the cables at the end.
Components
| Physical Characteristics |
|---|
| Components |
1 x HMX224 |
|
1 x HPC3G1.5 |
| Outer jacket |
Material |
Highflex PVC 15.9 mm (Ø) |
|
Colours |
Black |
| Type of cable |
Power & 1 x DMX-AES 110 ? cable |
| Filling |
Non-woven (PET/PA) tape |
| Standards and regulations |
| RoHS2 compliant |
According EU Directive 2011/65/EU |
| Reach compliant |
According EC 1907/2006 |
| Flammability test |
According EN 60332-1-2 |
| Mechanical Characteristics |
| Temperature range |
Fixed installation |
- 15 °C till + 70 °C |
|
Mobile installation |
- 5 °C till + 75 °C |
| Bending radius |
Fixed installation |
6 x outer diameter |
|
Mobile installation |
8 x outer diameter |
