General Specifications

• General Specs :

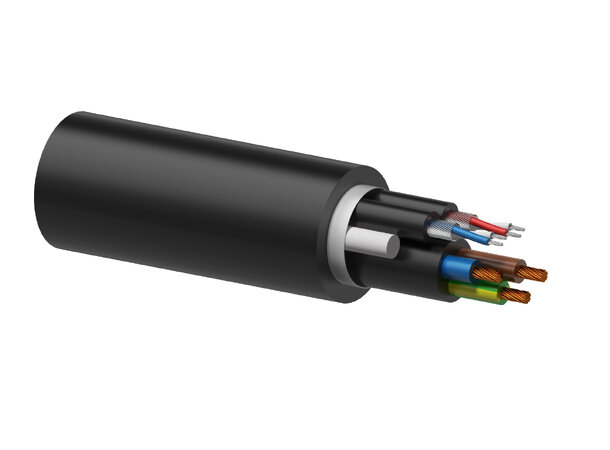

• Type of cable : Power & Stereo Signal cable
• Containing : 3G1.5 Power Cable & Stereo Balanced signal cable
• Filling : Cotton yarn
• Separator : Cotton paper
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 17 mm
• Printing colour : White
• Printing text : Procab PAC55
• Power Section :
• Inner conductor : BC 30 x 0.25 mm
• Inner conductor section : 1.5 mm²
• Isolation : PVC ø 3.0 mm
• Isolation colour : Black / Red / Yellow & Green
• Number of conductors : 3
• Inner jacket : Flexible PVC
• Inner jacket colour : Black
• Inner jacket dimensions : ø 8.0 mm
• Lead resistance - 100 meter : 1.20 Ohm
• Max. operation voltage : 450 V
• Max. current : 16 Amp
• Signal Section :
• Type of cable : Balanced stereo signal cable
• Inner conductor : 2 x BC 14 x 0.12 mm
• Inner conductor section : 0.16 mm²
• Isolation : LDPE ø 1.0 mm
• Isolation colour : Red / White
• Number of conductors : 2 x 2
• Conductor twisting : Yes
• Shielding : BC 32 x 0.12 mm - Spiral
• Shielding % : 100%
• Filling : None
• Separator : None
• Inner jacket : Flexible PVC
• Inner jacket colour : Black
• Inner jacket dimensions : ø 4 mm * 2
• Lead resistance - 100 meter : 10.6 Ohm
• Cable crosstalk - 100 meter : Min 73.3 dB
• Cap. Lead to lead - meter @ 1 kHz : 54 pF
• Cap. Lead to shielding - meter @ 1 kHz : 98 pF
• Power AWG size : 15
• Audio AWG size : 25
