Procab PMI224/1 mic/signalkabe 100m Sort Balansert signalkabel 2x0,22mm2 - 24AWG Procab PMI224/1 mic/signalkabe 100m Sort Balansert signalkabel 2x0,22mm2 - 24AWG

Procab PMI224/1 mic/signalkabe 100m Sort

Balansert signalkabel 2x0,22mm2 - 24AWG

Varenr: PMI224/1
1 996,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse

PMI224

Balanced microphone cable - 2 x 0.22 mm² - 24 AWG - HighFlex™

Rental & MI

  • 24 AWG thin and dense stranded conductors
  • Highflex™ solid & flexible jacket
  • 6.2 mm (Ø) outer diameter
  • Made in EU

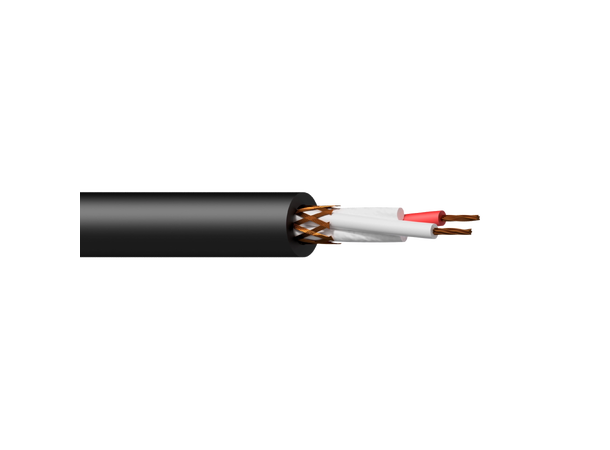

The PMI224 is a high-quality microphone cable with a highly flexible outer jacket. This cable is made rigid, which allows you to roll it up, even at longer lengths effortlessly. Two 24 AWG (0.22 mm²) conductors consisting of 12 copper strands with 0.15 mm thickness are surrounded by an 80-strand braided copper shielding with superior coverage. Combined with the thick and soft PVC outer jacket, this provides a flexible but solid feel while allowing it to withstand an extreme amount of bending cycles. Optimal signal transmission is guaranteed due to the low capacitance and use of high-purity copper, while the high-coverage shielding provides excellent immunity against interference. These features make the PMI224 perfect for use in professional stage & studio applications.



Teknisk info
Product Features
Application Rental & MI
Series Bulk & Accessories
Physical Characteristics
Inner conductor Insulation Material PE 1.5 mm (Ø)
Colours White / Red
Shielding Braiding BC 16 x 5 x 0.10 mm (Ø) (OFC)
Outer jacket Material Highflex PVC 6.2 mm (Ø)
Colours Black
Type of cable 24 AWG Microphone cable
Inner conductor Material BC 12 x 0.15 mm (Ø) (OFC)
Section 0.22 mm²
Filling Cotton Yarn
Inner conductor Number of conductors 2
Conductor twisting Yes
Mechanical Characteristics
Temperature range Fixed installation - 20 °C till + 70 °C
Mobile installation - 5 °C till + 70 °C
Bending radius Fixed installation 5 x outer diameter
Mobile installation 10 x outer diameter
