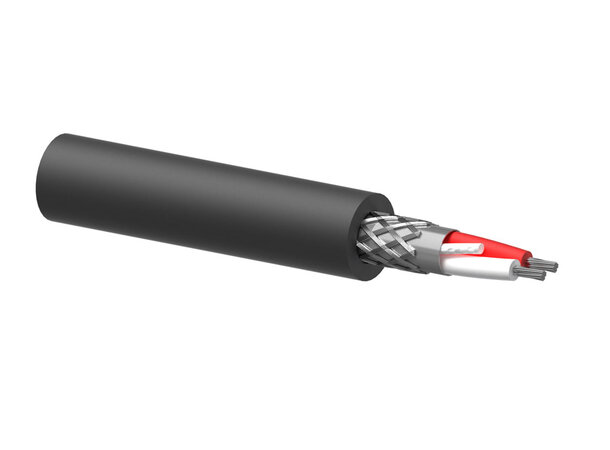

Highly Flexible outer jacket
22 AWG Tinned copper conductors
Double shielding (Al-foil + Braiding)
Smooth & durable outer jacket
Ideal for installation, stage & mobile use
Type of cable
DMX AES
Inner conductor
17 x 0.16 mm
Inner conductor section
0.342 mm²
Insulation color
Red / White
Number of conductors
2
Overall shield
Aluminum foil + Tinned copper braiding 16 x 8 x 0.1
Outer jacket
Flexible PVC
Outer jacket color
Dark gray
Outer jacket dimensions
Ø 6.5 mm ± 0.1mm
American Wire Gauge
22 AWG
Separator
None
Filling
Cotton
Capacitance Conductor / Shield @ 1 MHz
79pF / metre
Capactiance Conductor / Conductor @ 1 MHz
50pF / metre
Lead resistance
Less than 52 Ohms / km
