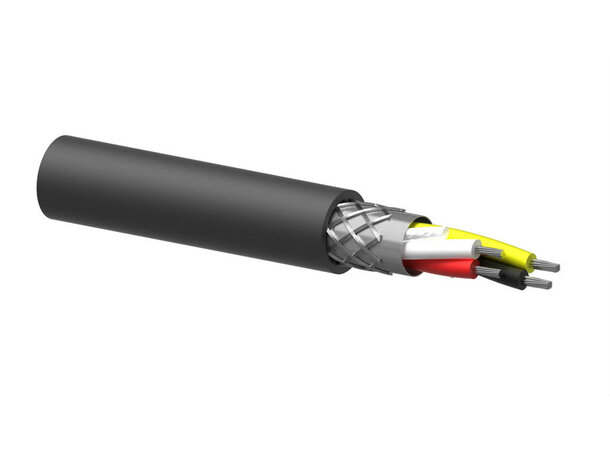

Highly Flexible outer jacket
22 AWG Tinned copper conductors
Double shielding (Al-foil + Braiding)
Smooth & durable outer jacket
Ideal for installation, stage & mobile use
Type of cable
DMX - 512
Inner conductor
Tinned Copper 17 x 0.16 mm
Inner conductor section
0.342 mm²
Insulation color
Red / White / Yellow / Black
Number of conductors
4
Overall shield
Aluminum Foil + Tinned Copper Braiding 16 x 8 x 0.1
Filling
Cotton
Separator
None
Outer jacket
Flexible PVC
Outer jacket color
Dark Grey
Outer jacket dimensions
Ø 6.8 mm ± 0.1mm
American Wire Gauge
22 AWG
Lead resistance
Less than 52 Ohms / kilometre
Capacitance Conductor / Shield
79 pF / metre
Capacitance Conductor / Conductor
50 pF / metre
