Procab PRX102/50, Trommel 1x XLR - 50m

Procab PRX102/50, Trommel 1x XLR - 50m

Varenr: PRX102/50
3 196,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse

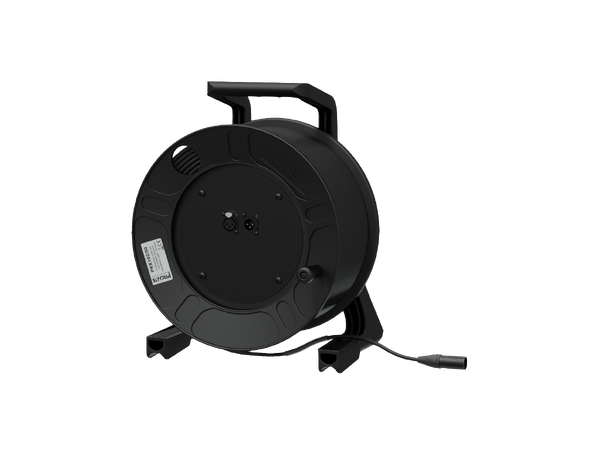

The PRX102 is a HighFlex balanced microphone cable (RMC306) assembled on a lightweight, extremely strong and impact resistant plastic reel (CDM310).

The conductor section is constructed using two 24 AWG stranded conductors which are surrounded by a braided shielding, offering a high immunity against noise and interference caused by external devices. The cable is jacketed using highly flexible and durable PVC materials, which guarantee a high flexibility and reliability for mobile applications.

The cable end is terminated using a male Neutrik XLR connector while the chassis side is fitted with both a male and female Neutrik XLR connector allowing linkthrough.

Teknisk info

General Specifications

  • Type of cable : Balanced microphone cable
  • Inner conductor : BC 20 x 0.12 mm (OFC)
  • Inner conductor section : 0.22 mm²
  • Number of conductors : 2
  • Insulation : PE Ø 1.6 mm
  • Insulation Colour : Red / White
  • Filler : Cotton yarn
  • Separator : Cotton paper
  • Shielding : Braiding BC 16 x 4 x 0.12 mm > 63% coverage
  • Outer jacket : Highflex PVC
  • Outer jacket colour : Black
  • Outer jacket dimensions : Ø 6.0 mm
  • American Wire Gauge : 24 AWG
  • Connection Type : XLR male (cable) to XLR female & male (chassis)
  • Fitted Connectors : NC3MXX-BAG, NC3FDLX, NC3MDLX
  • Dimensions (W x H x D) : 312 x 392 x 234 mm
