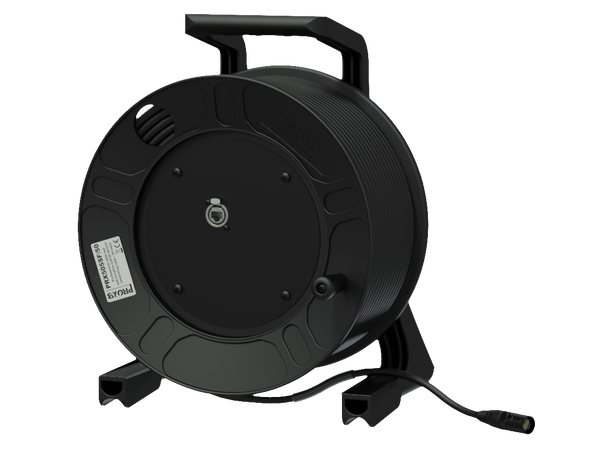

The PRX505 is a HighFlex CAT5 SF/UTP cable (PCT50SF) assembled on a lightweight, extremely strong and impact resistant reel (CDM310).

The chassis connector is a Neutrik NE8FDX-Y6 and the cable has a Neutrik NE8MX-B-1. The conductor section consists of 4 twisted pairs with stranded copper 24 AWG conductors with a polyethylene ‘+’ shaped separator in between.The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch even after numerous times of winding and unwinding.

Supports 10Base-T, 100Base-TX, 1000Base-T gigabit network
