General Specifications

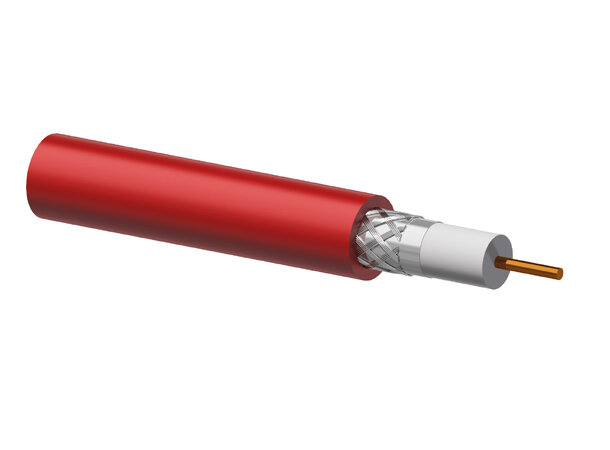

• Type of cable : LSHF Coaxial video cable - 75 Ohm - ø 7 mm
• Inner conductor : BC 1 x 0.1 mm
• Inner conductor section : 0.78 mm²
• Isolation : Foamed PE ø 4.5 mm
• Isolation colour : White
• Number of conductors : 1
• Shielding : BC 16 x 4 x 0.16 mm - Braiding
• : Aluminum foil
• Shielding % : 100%
• Outer jacket : Polyolefin
• Outer jacket colour : Dark red
• Outer jacket dimensions : ø 7 mm
• Impedance : 75 Ohm
• Printing colour : Grey
• Printing text : Procab RG06HF
• American Wire Gauge (AWG) : 26
