General Specifications

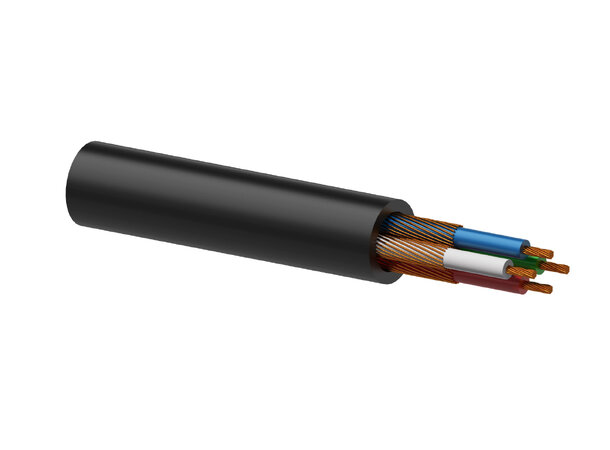

• Type of cable : Four conductor signal cable
• Inner Conductor : 4 x BC 18 x 0.12 mm
• Inner conductor section : 0.20 mm²
• Isolation : LDPE ø 1.3 mm
• Isolation colour : Red / White / Green / Blue
• Number of conductors : 4
• Conductor twisting : Yes
• Shielding : BC 4 x 18 x 0.12 mm - Spiral
• Shielding % : 100%
• Filling : None
• Separator : None
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 5.5 mm
• Printing colour : White
• Printing text : Procab SIG85
• Lead resistance - 100 meter : 10.6 Ohm
• Cable crosstalk - 100 meter : Min 73.3 dB
• Cap. Lead to lead - meter @ 1 kHz : 47 pF
• Cap. Lead to shielding - meter @ 1 kHz : 85 pF
• American Wire Gauge (AWG) : 24
