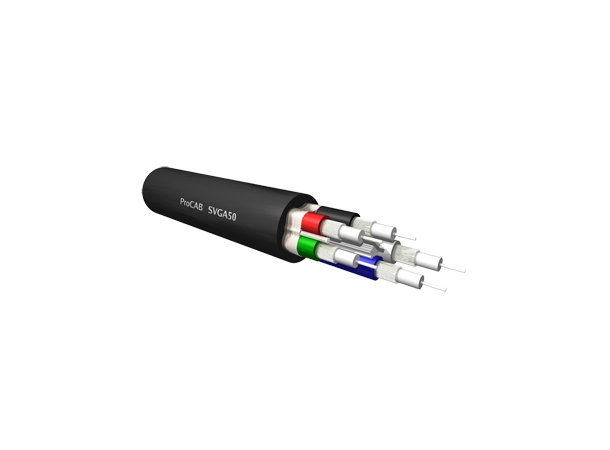

General Specifications

• Type of cable : SVGA video cable
• Inner conductor : TC 7 x 0.16 mm
• Inner conductor section : 0.14 mm²
• Isolation : Foamed PE ø 2.2 mm
• Isolation colour : White
• Number of conductors : 5
• Shielding : TC 16 x 6 x 0.12 mm - Braiding
• Shielding % : 100%
• Inner jacket : Flexible PVC
• Inner jacket colour : Black / Green / Blue / Red / White
• Inner jacket dimensions : ø 3.2 mm
• Impedance : 75 Ohm
• Filling : Cotton yarn
• Overall shielding : Aluminum foil
• : TC 7 x 0.25 mm - Drain wire
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 11 mm
• Printing colour : White
• Printing text : Procab SVGA50
• Lead resistance - 100 meter : 16 Ohm
• Shield resistance - 100 meter : 4.4 Ohm
• American Wire Gauge (AWG) : 26
