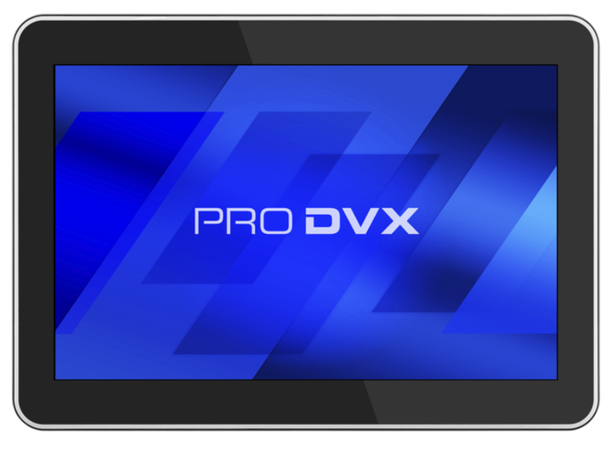

The ProDVX APPC-10XP is an Android Panel PC with a 10.1” Touch Display and Power over Ethernet (PoE). The ProDVX APPC-10XP comes with Android 8 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module, Motion Sensor or VESA mounting brackets.
| Panel | |
| |
| Panel type | TFT LCD IPS |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 wide |
| Backlight | Edge-LED backlight |
| Brightness | 500 cd/m2 |
| Viewing Angle | H 160° / V 160° |
| Contrast Ratio | 800:1 |
| Touch Type | 10 point touch projected capacitive |
| Convenience | Landscape,Portrait,Table Mode |
| Gyro | N/A |
| |
| System | |
| |
| Processor | ARM (RK3288) |
| CPU | Cortex A17, Quad Core, RK3288 |
| GPU | MALI T764 / 3D Graphic Engine (4K) |
| Cooling | Fanless |
| System Memory | 2 GB DDR3 SDRAM |
| Internal Storage | 16 GB eMMC Flash |
| External Storage | SD-Card Slot (door) |
| Card Slot | SD |
| OS | Android 9 (optional Linux) |
| LED Light Bar | N/A |
| I/O Ports | 12 V DC-IN,3.5 mm audio-out,GPIO Port,HDMI,Micro-USB,RJ45,USB |
| Network LAN RJ45 | 10/100/1000 Mbps LAN |
| WiFi | 802.11 a/b/g/n/ac |
| Bluetooth | BT 4.2 |
| Power over Ethernet (PoE) | IEEE 802.3at (PoE+) |
| Integrated NFC | N/A |
| Camera | - |
| |
| Video/Audio | |
| |
| Video Support | 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio Support | AAC,ASF,MP2,OGG,WAV,WMA |
| Photo Support | JPG,JPEG,PNG,BMP,GIF |
| Microphone | YES |
| Speakers | 2 x 2 W |
| Audio Jack Output 3.5mm | YES |
| |
| Physical | |
| |
| Housing | Plastic |
| Color | Black |
| Weight | 650 g |
| Dimensions | 256 x 181 x 27 mm |
| Mounting / VESA | VESA 75 |
| Power Supply | 12 V / 2 A (EU, UK, US) |
| Power Supply Included? | No |
| Power Usage | 10 ~ 20 Watt |
| Pogo Pins | YES (bottom/left/right) |
| |
| Other | |
| |
| OSD Language | Multi OSD language |
| Clock Battery (for RTC) | CR1220 - Lithium-metal non-rechargeable coin |
| Storage Temp | -10 ~ 55 degrees C |
| Working Temp | 0 ~ 40 degrees C |
| Storage/Working Humidity | 10 ~ 90 % non-condensing |
| MTBF | 50,000 hours demonstrated |
| Standard Warranty | 3 years |
| Certifications | FCC, CE, RoHS |
