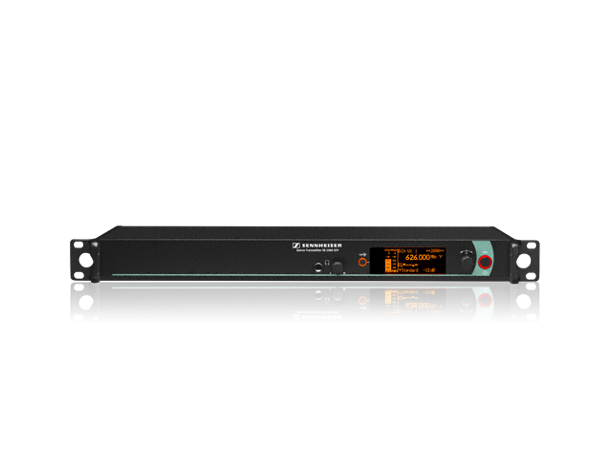

Sennheiser SR 2001 A-range 1W sender IEM Rack transmitter - 516-558  MHz

Sennheiser SR 2001 A-range 1W sender

IEM Rack transmitter - 516-558 MHz

Varenr: 109294
24 746,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse
Rugged, reliable, and flexible - in short: professional. With SR 2000, you can choose from 26 frequency banks with up to 32 channels. The channels can be user-programmed six of the frequency banks. Three switchable RF output powers 10, 30, and 50 mW - additionally this custom built unit can transmit 1000mW for extended range.

  • Up to 6 x 32 tunable channels
  • Switchable HF output power for versatile use
  • Rugged 19" all-metal housing with integrated power supply unit
  • Up to 3000 frequencies in up to 75 MHz switching bandwidth
  • 20 fixed frequency banks with up to 32 compatible presets
  • 6 banks each with up to 32 tunable channels
  • Frequency setting in 25 kHz steps
  • Switchable RF output power for versatile use
  • Enhanced audio frequency response in bass range
  • Receivers can be configured from the transmitter menu
  • Can be synchronized with the receiver using infrared interface
  • Wide range of accessories for virtually any use
  • Monitoring and control using Sennheiser WSM PC software
  • User-friendly menu interface with two-color backlit graphic display (red as a warning)
  • Pilot tone transmission for interference-free operation
  • Adjustable headphone connection
  • Wide range of accessories for virtually any use


Teknisk info
Sensitivity in free field, no load (1kHz)1,8 mV/Pa +- 2,5 dB
Dimensions436 x 215 x 43 mm
CompanderHDX
Audio-XLR connector2 x XLR, 2 x 6,5 mm Jack
Presetsmax. 32
Frequency response25 - 15000 Hz
THD, total harmonic distortion< 0,9%
Weight2600 g
Signal-to-noise ratio> 90 dB(A)
RF frequency range516...865 MHz
RF output power10, 30, 50 mW (US: 100 mW) switchable
Switching bandwidthmax. 75 MHz
Peak deviation±48 kHz
Nominal deviation±24 kHz
In compliance withCE, FCC, IC
ModulationFM, MPX-stereo
Power supply100 - 240 V AC, 50/60 Hz
Carrier frequenciesmax. 3000
Antenna connector2 x BNC
Current consumption0,1 A
Headphone connector> 100 mW (32 O)
Input voltage range+ 22 dBu max
